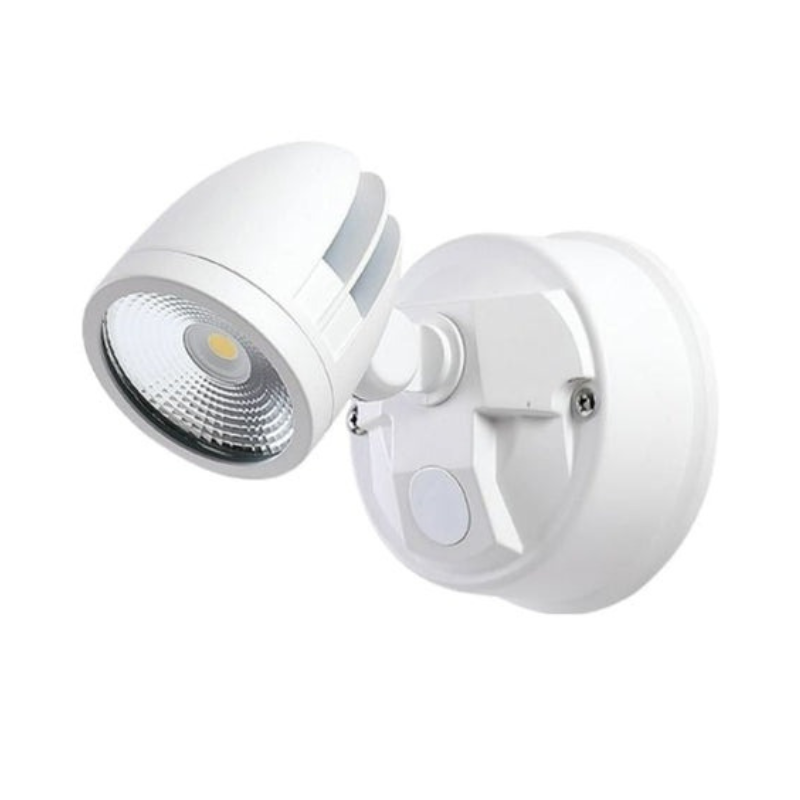

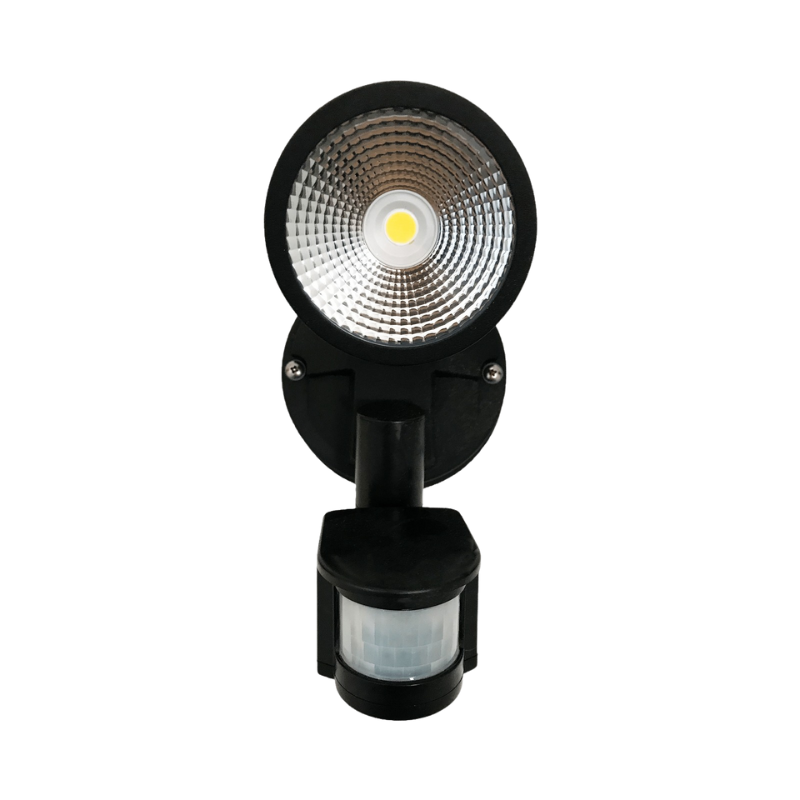

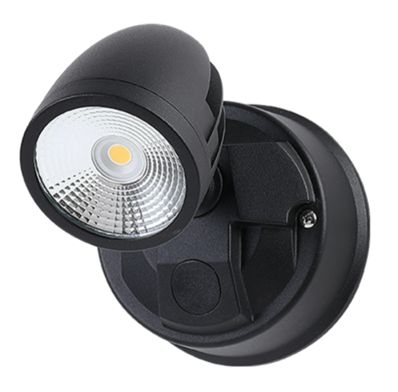

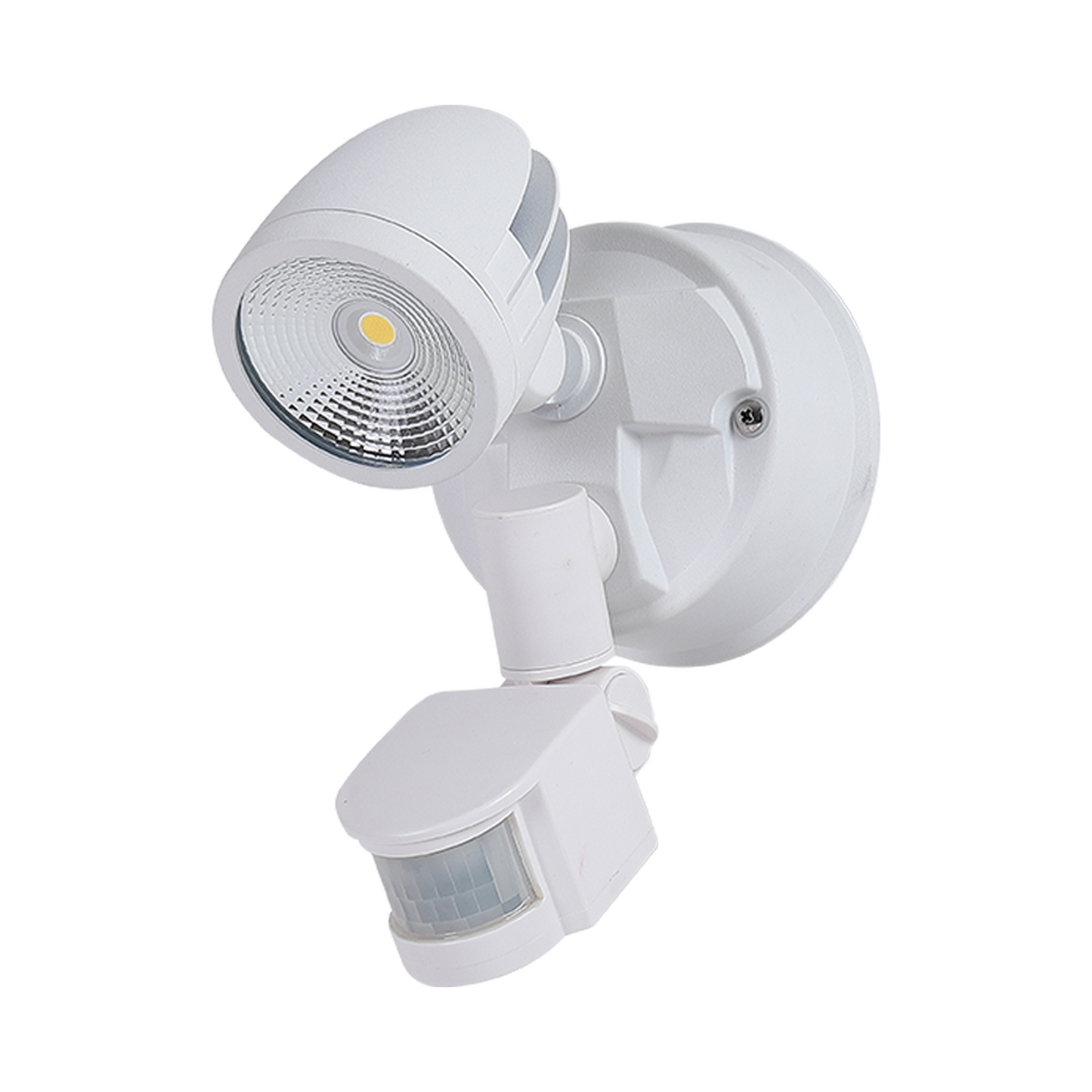

Starco 12W LED Single Head Spotlight with or without Sensor

Illuminate your outdoor spaces with the Starco 12W LED Single Head Spotlight. This spotlight is designed for optimal performance, featuring an adjustable head to direct light precisely where needed. Available in both sensor and non-sensor models, it offers flexibility and convenience. The motion sensor version enhances security by detecting movement and providing automatic lighting, while the non-sensor version ensures constant illumination. Perfect for driveways, entrances, and gardens.

PIR Controls

Adjusting the duration time

The length of time that remains switched on after activation can be adjusted from 8 seconds to 12 minutes. Rotating the TIME knob + to - will reduce the duration time.
Note: Once the light has been triggered by the PIR sensor any subsequent detection will start the timed period again from the beginning.

Adjusting the LUX control level

The LUX control module has a built-in sensing device (photocell) that detects day light and darkness. The (☼) position denotes that the floodlight can work at day and night, and the (☽) position only work at night. You can set to operate the unit at the desired level by adjusting the LUX knob.

Adjusting the sensitivity

The sensitivity means the Maximum distance which PIR Sensor can be triggered by movement body. Turning the SENS knob + to- will decrease the sensitivity.

Setting the Controls

Put the LUX control knob to day light (☼) position, turn the wall switch on and wait half a minute for the control circuit to stabilize. At this stage ensure that the TIME control knob is set at minimum duration. The lamp will now switch on and remain on for about 30 seconds (within 60 seconds).

Direct the sensor toward the desired area to be scanned by adjusting the elbow joint and Swivel joint on the sensor arm.

IMPORTANT: LOOSEN LOCK SCREWS ON SENSOR BEFORE MAKING ANY ADJUSTMENTS

•

• • Any Exterior Areas
  • House Outdoor Lighting
  • Landscapes
  • Warehouses
  • Corridors
  • Parking Areas
  • Outdoor Pool Areas
• • Power: 12W
  • Power Factor: >0.9
  • Input Voltage: AC220-240V
  • Power Frequency: 50Hz
  • LPW 90-100lm/w
  • Lumen Output: 1000lm
  • Colour Temperature: 5000K
  • CRI: >80
  • Beam Angle: 115°
  • Duration Time: 8±5 second ~ 12±2 minutes
  • Detect Range: Max 12m
  • Luminaire Net Weight: 0.61kg
  • LED Chip: 1PC CREE COB
  • IP: IP65
  • Dimmable: No
  • Working Temperature: -10~+40°C
  • Storing Temperature: -30~+70°C
  • Colour Fitting: Black/White
• • Light Fitting Size: 121*218*187mm
  • Net Weight: 0.6kg
  • Gross Weight: 0.7kg
