Star Sparky Direct

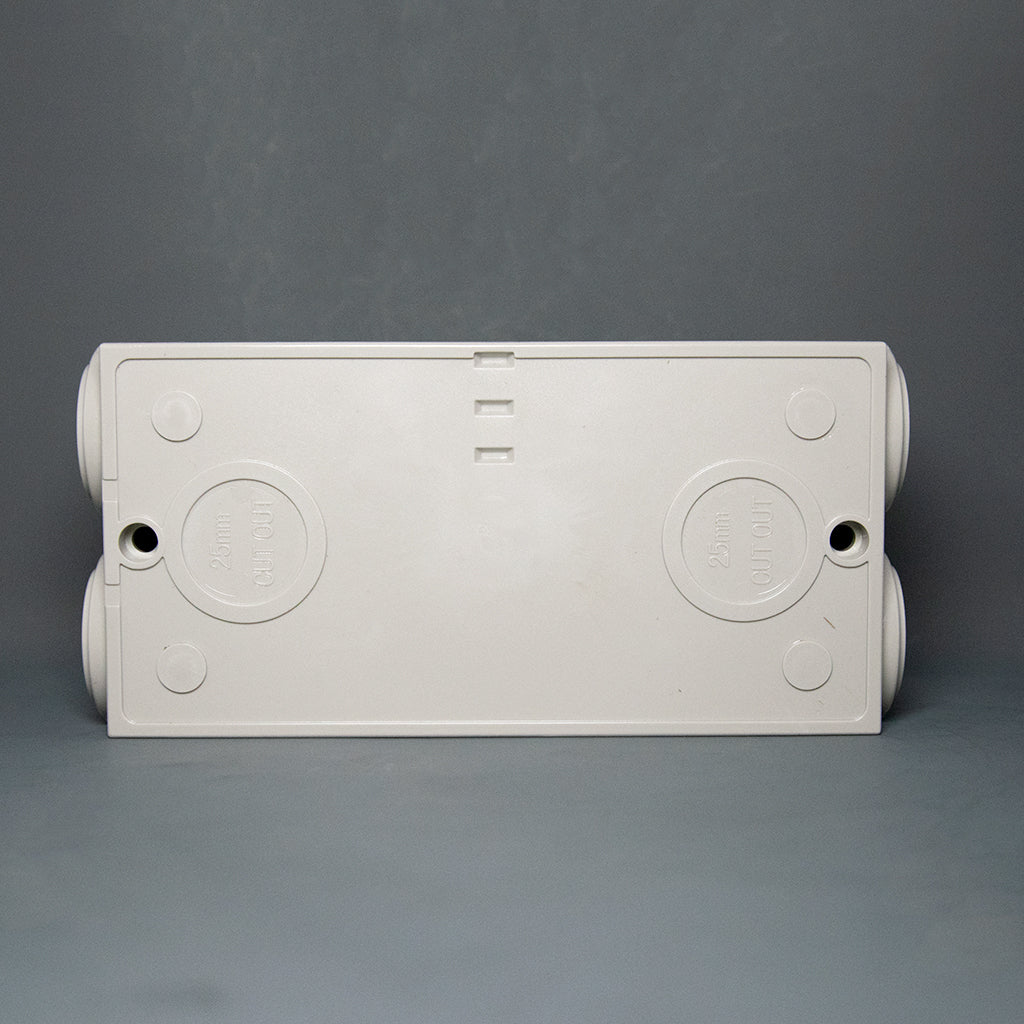

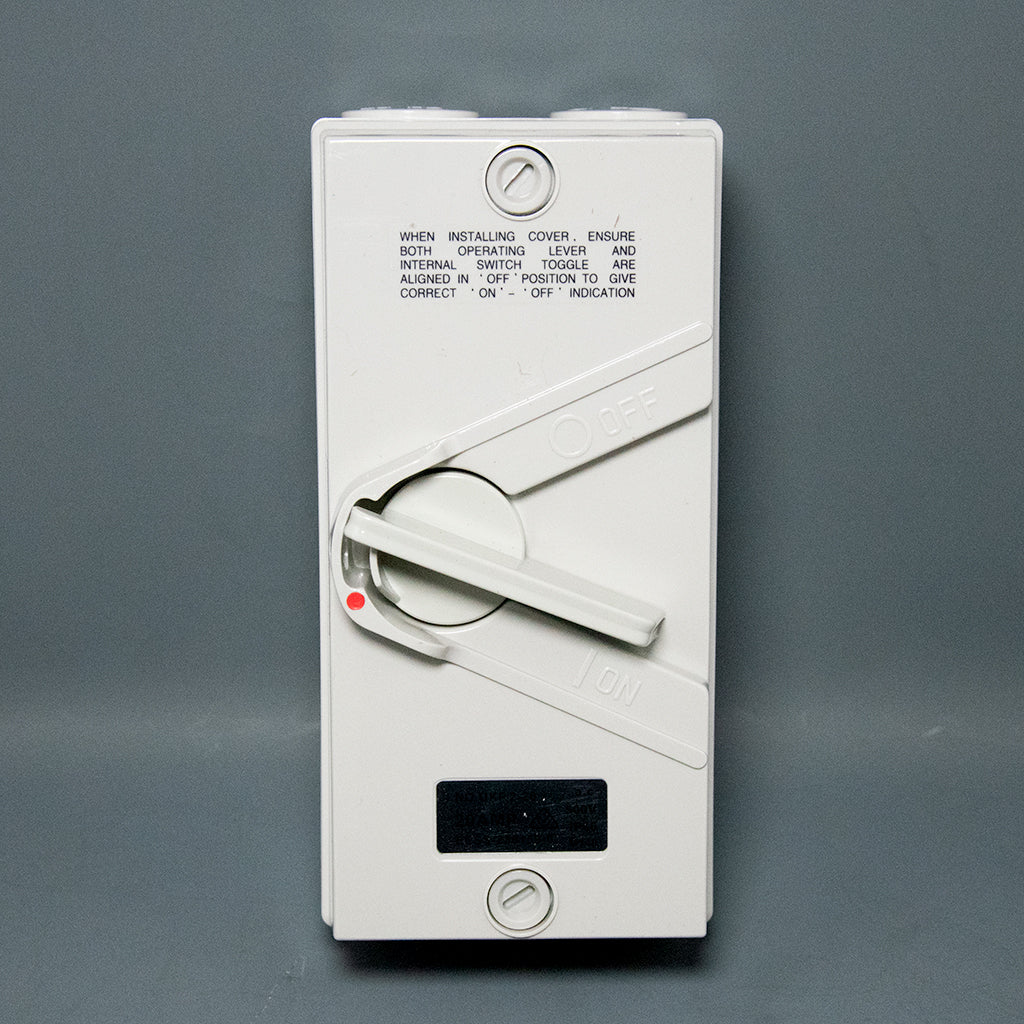

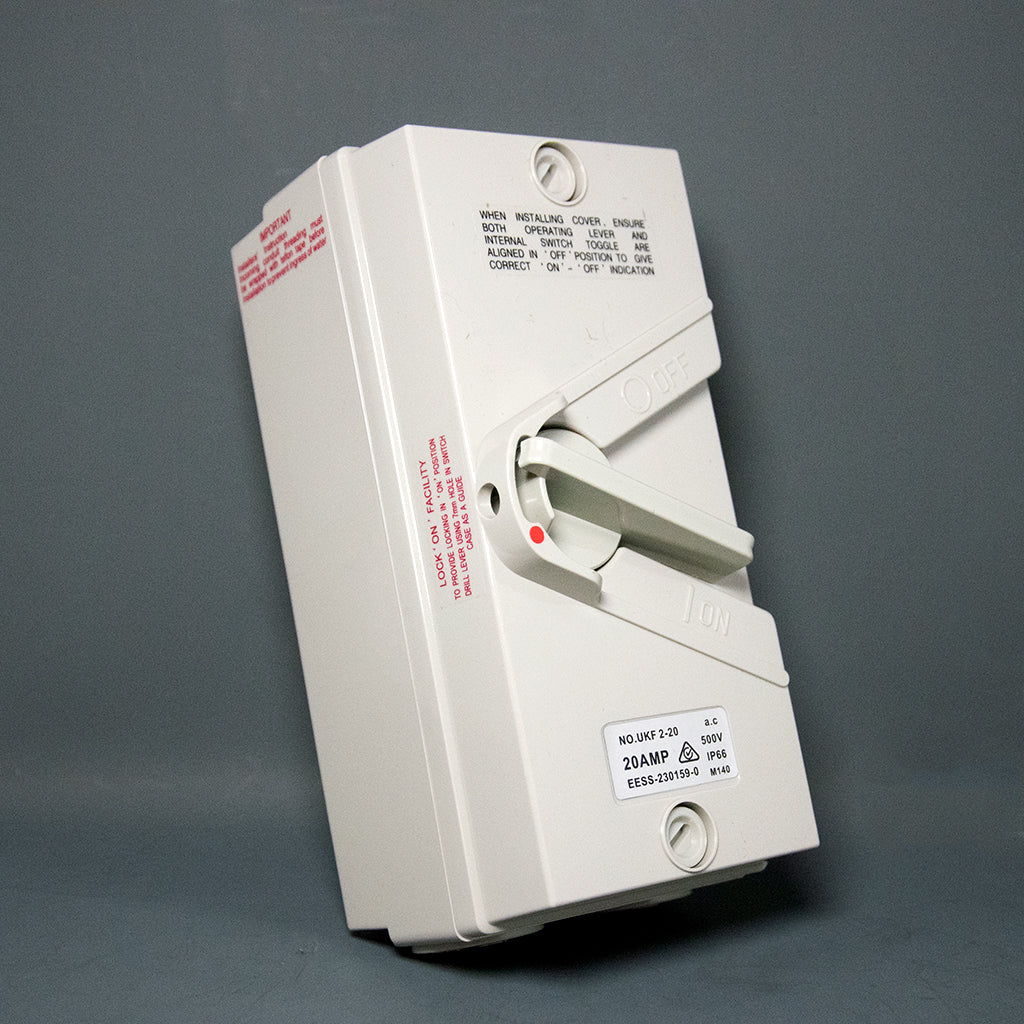

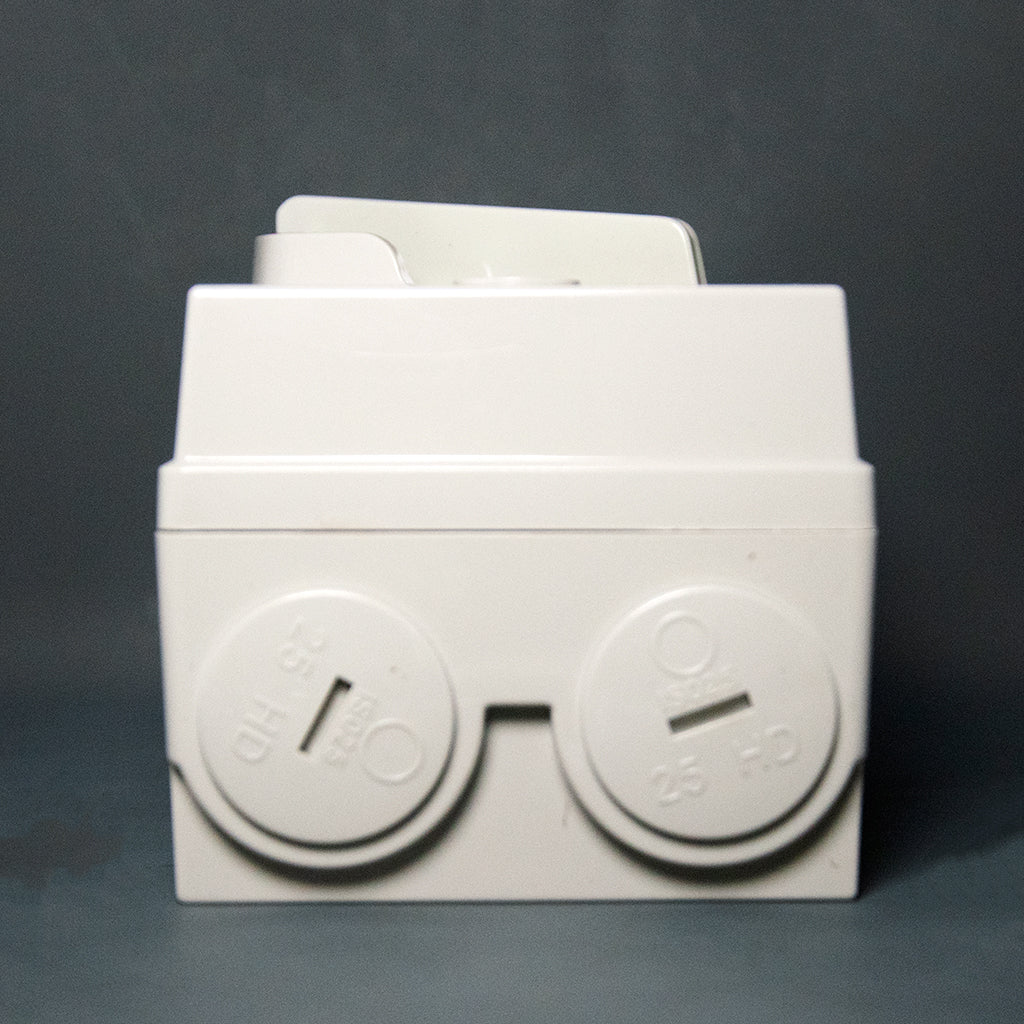

2 Phase 20A Weatherproof Isolator Switch

2 Phase 20A Weatherproof Isolator Switch

SKU:UKF2P20

Regular price $11.46 AUD
Regular price Sale price $11.46 AUD
Special Sold out
Tax included. Shipping calculated at checkout.

Shipping & Returns

Shipping fee will calculated at check out.

We guarantee that orders placed before 11 am will be dispatched the same day (subject to stock availability), exclude weekends and holidays. After receiving your order confirmation message, you will receive another notification when your order has shipped.

Description

A 2-pole 20A isolator is a type of electrical switch designed to safely disconnect a circuit or equipment from the main power supply. Here is a detailed description:

Feautures

  1. Operation:

    • Manual Operation: The isolator is manually operated, meaning it has a physical switch or lever that needs to be turned on or off to connect or disconnect the circuit.
  2. Installation:

    • DIN Rail Mounting: Many 2-pole 20A isolators are designed for easy installation on DIN rails within electrical distribution boards or enclosures.
    • Panel Mounting: Some models are designed to be mounted on panels for easier access and operation.
  3. Usage:

    • Isolation for Maintenance: Used to safely isolate electrical equipment or circuits for maintenance, repair, or inspection.
    • Emergency Disconnection: Can be used to quickly disconnect power in emergency situations.
  4. Construction:

    • Robust Design: Made with durable materials to withstand regular operation and environmental factors.
    • Safety Features: Often includes features such as padlocking capability to prevent accidental reconnection during maintenance.
  5. Compliance:

    • Complies with relevant safety standards and regulations such as IEC (International Electrotechnical Commission) or local standards to ensure safe and reliable operation.

Applications:

  • Residential: Used in home electrical panels to isolate circuits for appliances or specific rooms.
  • Commercial: Installed in commercial buildings to isolate power to certain areas or equipment.
  • Industrial: Employed in industrial settings to safely disconnect machinery or production lines.

Benefits:

  • Safety: Provides a reliable means to disconnect power, enhancing safety during maintenance or in emergencies.
  • Convenience: Simplifies the process of isolating electrical circuits, making it easier for electricians and maintenance personnel to perform their tasks.
  • Compliance: Ensures that electrical systems comply with safety regulations and standards.

Specification

Features and Specifications:

2-pole:

This means the isolator can disconnect both the live and neutral wires simultaneously, providing enhanced safety and ensuring complete isolation of the circuit.

20A:

The isolator is rated to handle a maximum current of 20 amperes, making it suitable for moderate power applications such as small industrial machines, residential circuits, or small commercial setups.

Typically rated for standard residential and commercial voltages, often around 240V AC or 415V AC, depending on the specific application and country standards.

Dimension & Weight

Gross Weight: 0.5KG

Net Weight: 0.45KG

Packaging Dimension (LxWxH): 180x90x90mm

Net Dimension (LxWxH):170x80x70mm
