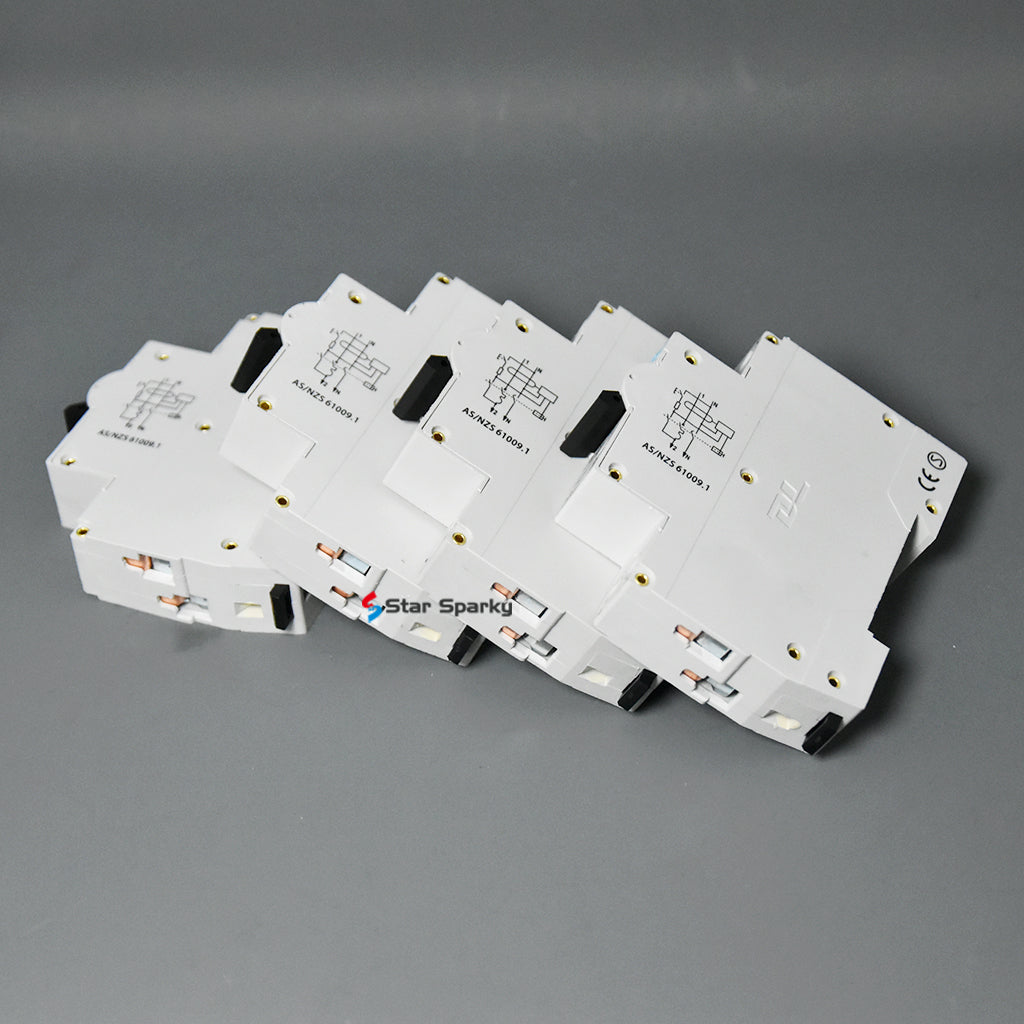

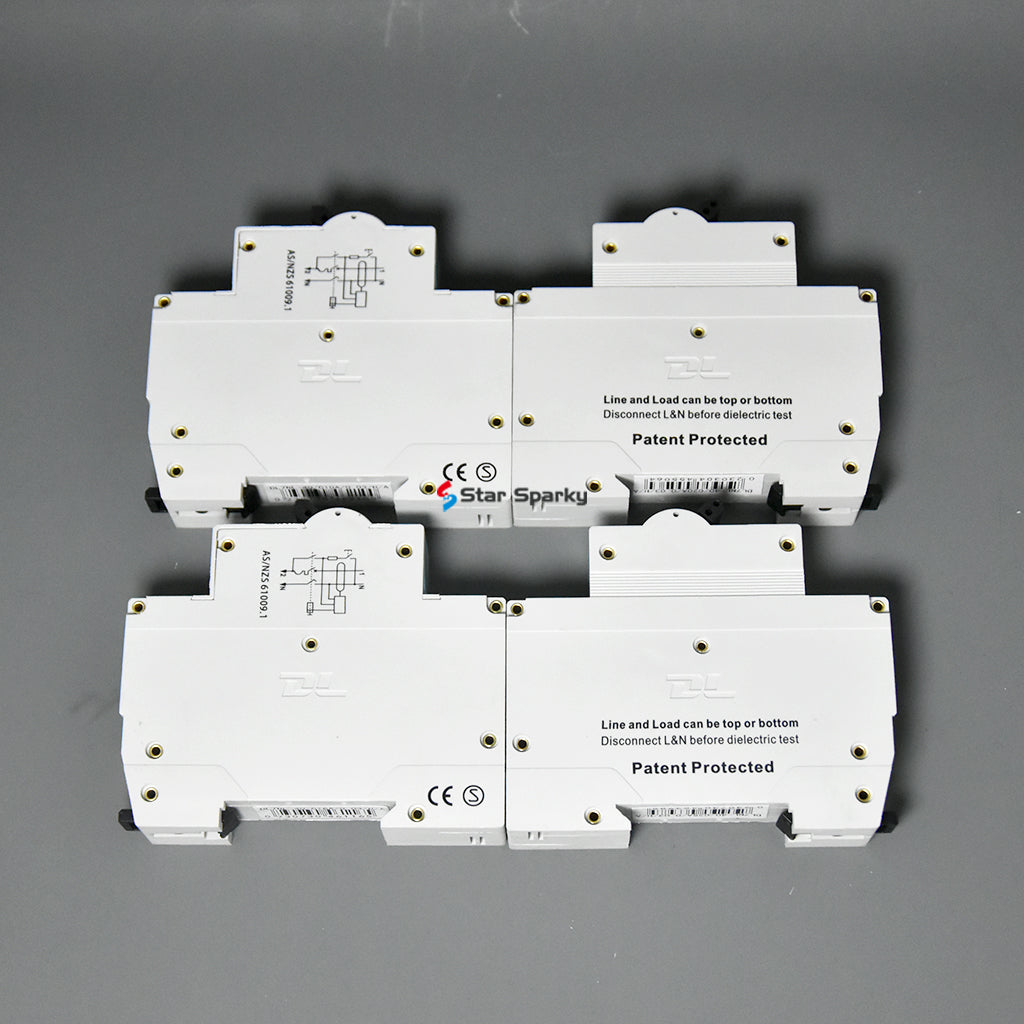

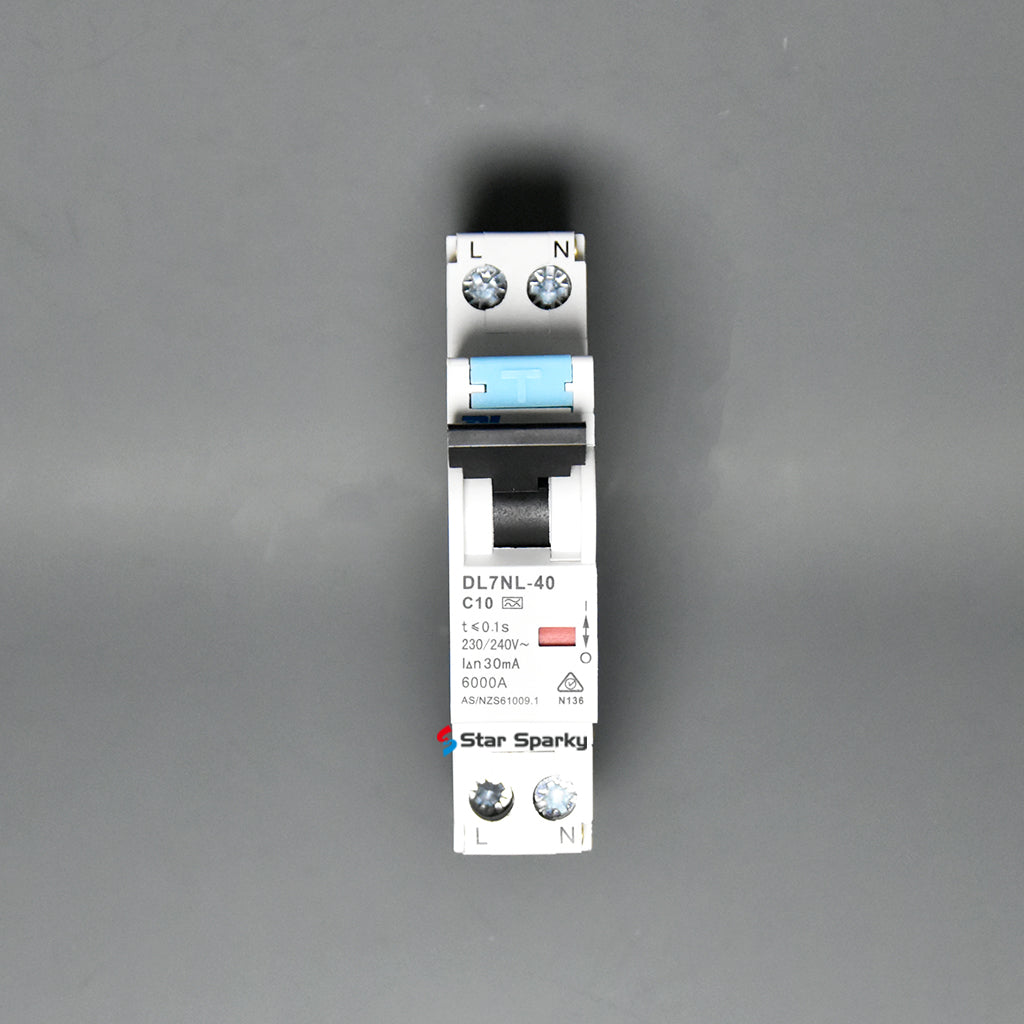

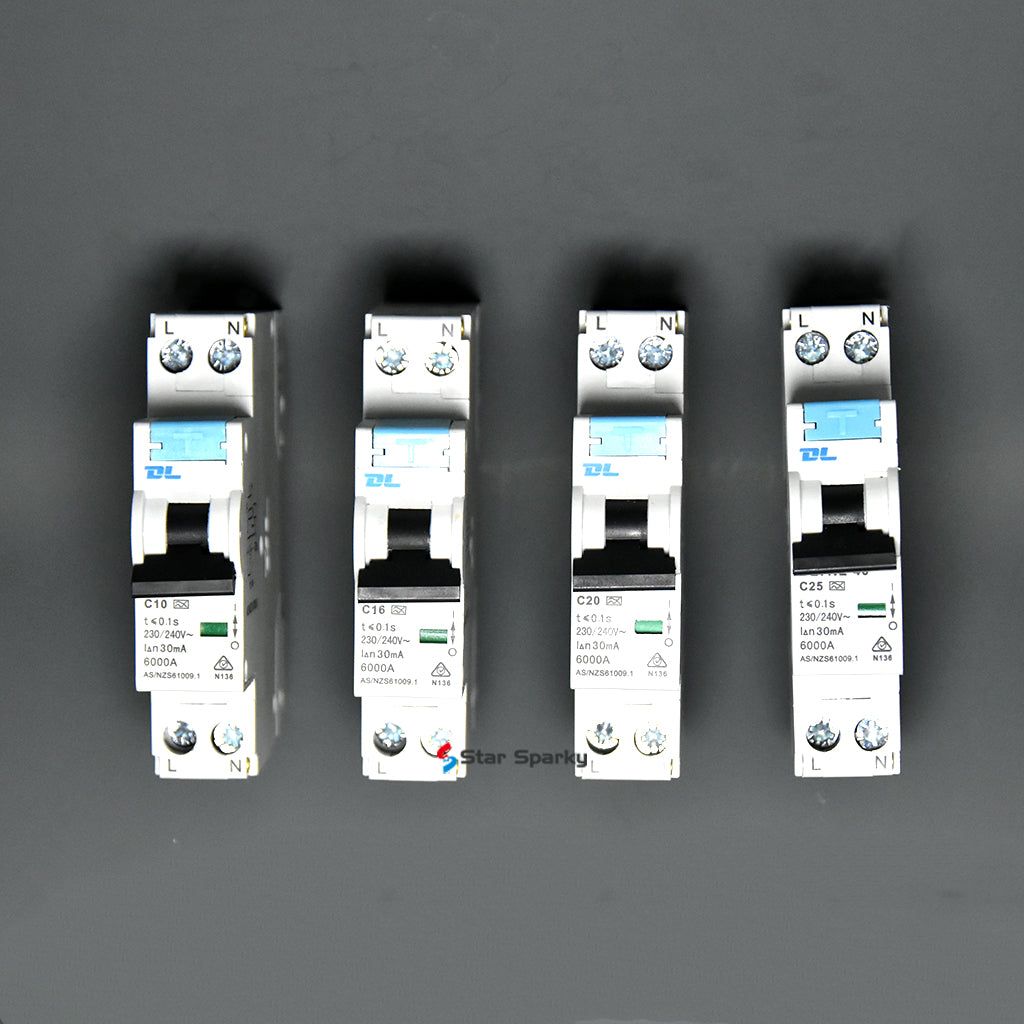

A Type Single pole RCBO | 6KA

SKU: 6KA1P10A-A

Excl. GST Incl. GST

$21.99 AUD

Specification

Current Rating: 20A
Single Pole RCBO/Safety Switch with MCB/RCD Functionality
Breaking Capacity Rating: 6kA
Sensitivity to Earth-Leakage: 30mA
Pole numbers: 1P+N
Electro-Mechanical Endurance: 4000 Operations
Type: A
Mounting: Din Rail
Non-Polarized Design
Compliance with ESV Regulations - Suitable for Sale & Installation in Victoria
Approved According to Australian Standards AS/NZS 61009:1

Dimesion & Weight

Dimensions (mm)

72(H)81(L)18(W)

Weight (g)

105g

Downloadable Document

Add content for box 3 in the theme editor. This text will be revealed when the box is clicked and expanded.

Single pole RCBO 6KA Type-A

Description

A Single Pole RCBO 6KA Type-A is an electrical safety device designed to protect a single circuit. It combines Residual Current Device (RCD) and Miniature Circuit Breaker (MCB) functionalities in one unit. It can handle up to 6 kiloamperes of fault current and is sensitive to both AC and pulsating DC residual currents, making it suitable for general applications.

Designed to handle high-stress electrical situations, this single pole RCBO boasts a rated breaking capacity of 6kA, which can interrupt a fault current of up to 6000 amperes. Its 30mA earth-leakage capacity provides an essential safety feature, immediately tripping the circuit if it detects a potentially dangerous leak to earth.

6KA Single Pole RCBO adheres to the strictest safety and performance standards. It's ESV compliant and approved as per Australian Standards AS/NZS 61009:1, assuring its quality and reliability.
