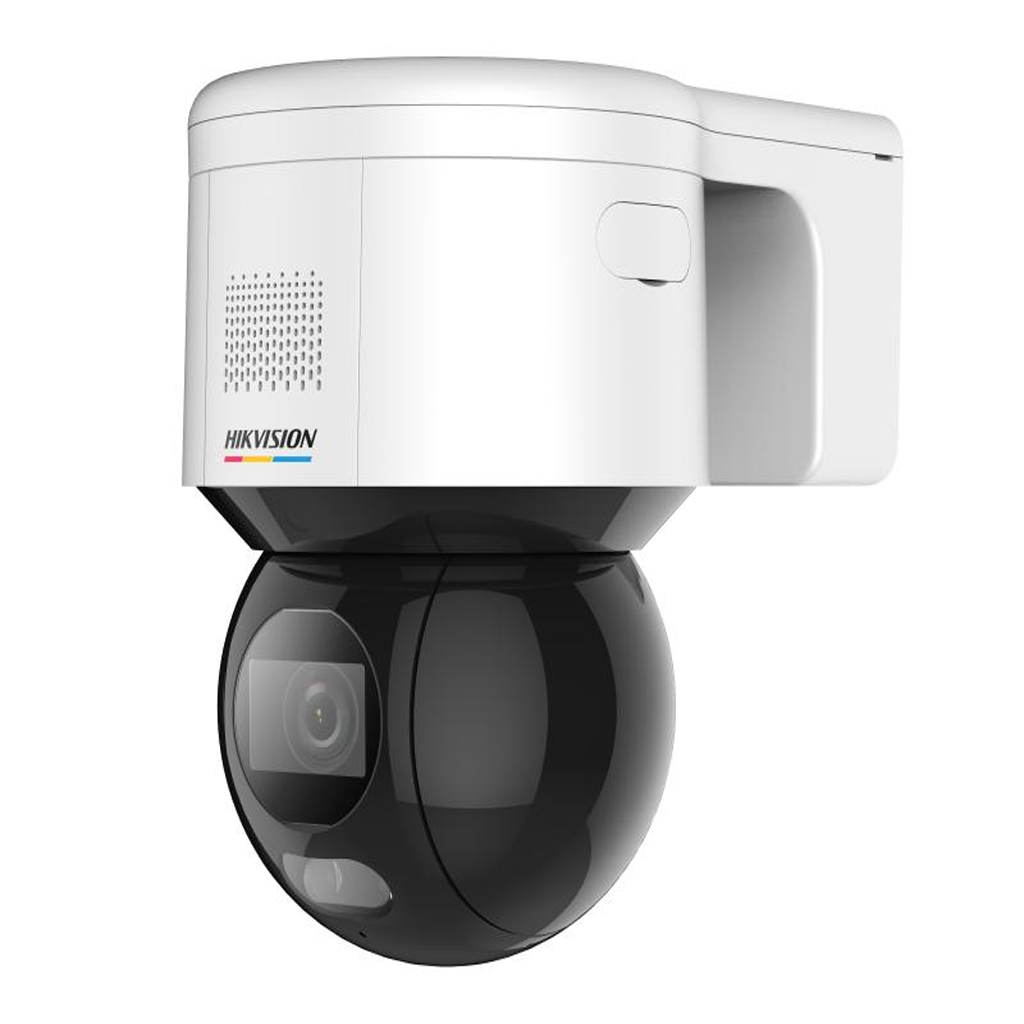

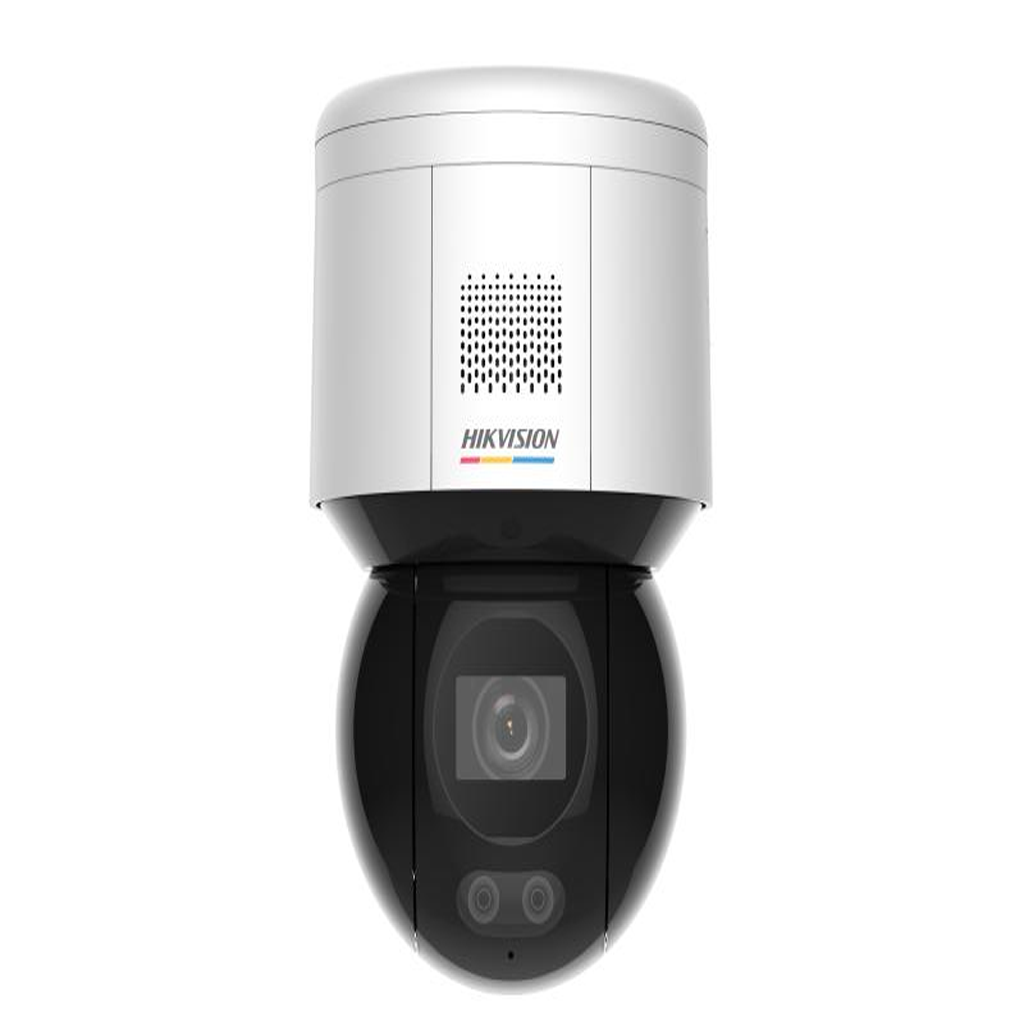

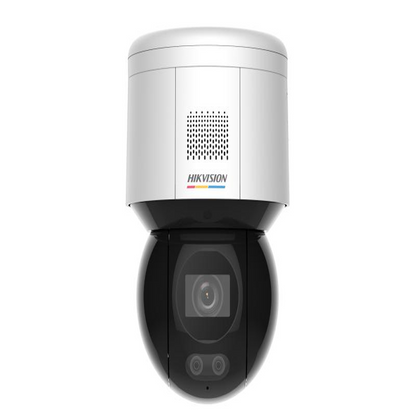

Hikvision DS-2DE3A400BW-DE ColorVu Mini PT Dome Network Camera

Part of Hikvision’s ColorVu range, the DS-2DE3A400BW-DE is a Pan and Tilt camera that produces an exceptional 4MP high-resolution video. Powered by the latest innovation in image sensor technology it supports 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light. It also features Acusense.

Hikvision’s DS-2DE3A400BW-DE 4 MP ColorVu PT Camera can be widely used in multiple indoor and outdoor scenes such as malls, stores, parks, factories, scenic areas, entrances, and exits.

Please be advised that this product do not contain any zoom function. Pan and Tilt only.

Download the datasheet by clicking the link:  DATASHEET

User manual Link:  UserManual

Quick Start Guide Link:  Quick Start Guide

Main Features:

• Minimum Illumination: Color: 0.0005 Lux @ (ƒ/1.0, AGC On); 0 Lux with White Light
• Up to 2560 × 1440 @ 30 fps
• Accurate Human/Vehicle Target Classification/Alarm, and Face Capture Based on Deep Learning Hardware and Algorithm
• Linked Audible and Visual Alarm, Built-in Microphone and Speaker
• 24/7 Color Imaging with Low Power Consumption. Up to 30 m White Light Distance
• IP66; PoE

Camera Module

• Image Sensor 1/1.8＂ progressive scan CMOS
• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• Shutter Speed 1/1 to 1/30,000 s
• Day & Night 24/7 colorful imaging
• Day/Night Switch day, night, auto, scheduled-switch
• BLC yes
• WDR 120 dB WDR
• HLC yes
• 3D DNR yes
• Defog yes
• EIS yes
• Regional Exposure yes
• Image Settings saturation;brightness;contrast;sharpness
• Image Parameters Switch yes
• White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp ; Locked WB
• Digital Zoom 16x
• Privacy Maskup to 24 masks (8 masks for each scene)
• SNR＞52dB
• General Function mirror, password protection, watermark, IP address filter

Lens

• Focal Length 4 mm

FOV

• Horizontal field of view: 88.7°
• Vertical field of view: 46.5°
• Diagonal field of view: 105.0°

Aperture

• F1.0

Illuminator

• White Light Distance 30 m

PTZ

• Movement Range (Pan) 350°
• Movement Range (Tilt) 0° to 90°
• Pan Speed pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt Speed tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Zoom yes
• Presets 300
• Power-Off Memory yes
• Park Action preset
• 3D Positioning yes
• PTZ Status Display yes
• Preset Freezing yes
• Scheduled Task preset; dome reboot; dome adjust; aux output

Video

• Max. Resolution 2560 × 1440
• Stream Type main stream;sub-stream; third stream
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Warranty:

• 3 Years & Supports
