Fujitsu Datasheet

• Indoor unit: ASTH30KMTD
• Outdoor unit: AOTH30KMTD
• Operation Type: Reverse Cycle
• Power Source V/Ph/Hz: 230 / 1 / 50
• Cooling Capacity kW (Rated (Min - Max)): 8.50 (2.9 - 10.5)
• Heating Capacity kW (Rated (Min - Max)): 9.00 (2.7 - 11.2)
• Input Power Cooling kW (Rated (Min - Max)): 2.49 (0.6 - 4)
• Input Power Heating kW (Rated (Min - Max)): 2.39(0.5 - 4.01)
• EER Cooling kW/kW: 3.41
• COP Heating kW/kW: 3.77

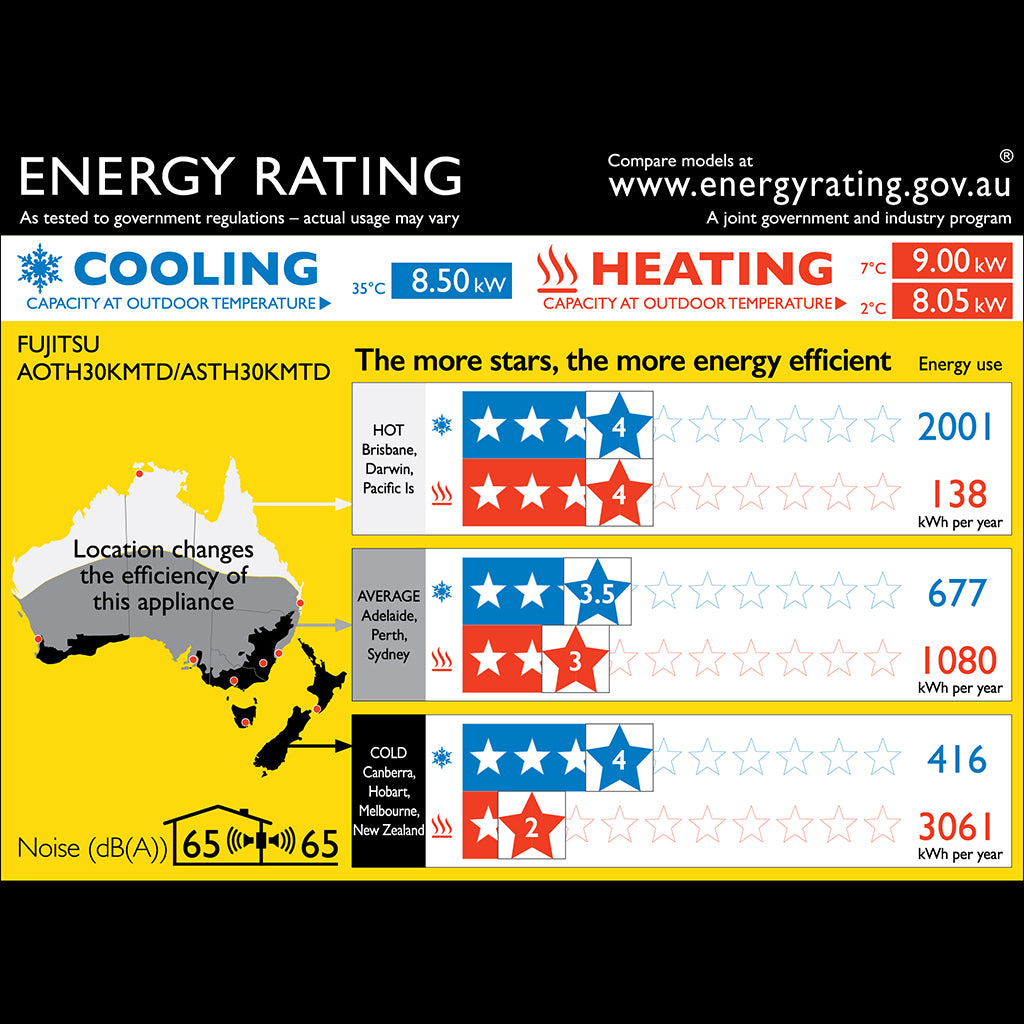

• Star Rating Cooling(0-10) (Hot / Average / Cold): 4 / 3.5 / 4
• Star Rating Heating(0-10) (Hot / Average / Cold): 4 / 3 / 2
• Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.56 / 5.284 / 5.716
• Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.55 / 4.534 / 3.841
• Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 6.233 / 6.729 / 7.766
• Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 5.611 / 5.02 / 4.353
• Running Current amps (Cooling / Heating): 11 / 10.6
• Moisture Removal l/hr: 4.4
• Indoor Sound Pressure Cooling dBA (High / Quiet): 51 / 32
• Indoor Sound Pressure HeatingdBA (High / Quiet): 48 / 32
• Outdoor Sound Pressured BA (Cooling / Heating): 53 / 55
• Outdoor Sound Power dBA: 65
• Air Circulation (Indoor - High Fan) Cooling l/sec: 381
• Air Circulation (Indoor - High Fan) Heating l/sec: 350
• Piping Connectsmm Ø (Liquid / Gas): 9.52 / 15.88
• Pipe Length m (Max (Precharged)): 30
• Max Height Difference: 30M
• Operation Range Cooling °CDB (Min to Max): -10 to 50
• Operation Range Heating°CDB (Min to Max): -15 to 24
• Refrigerant Type: R32
• Refrigerant Amount: 1650g

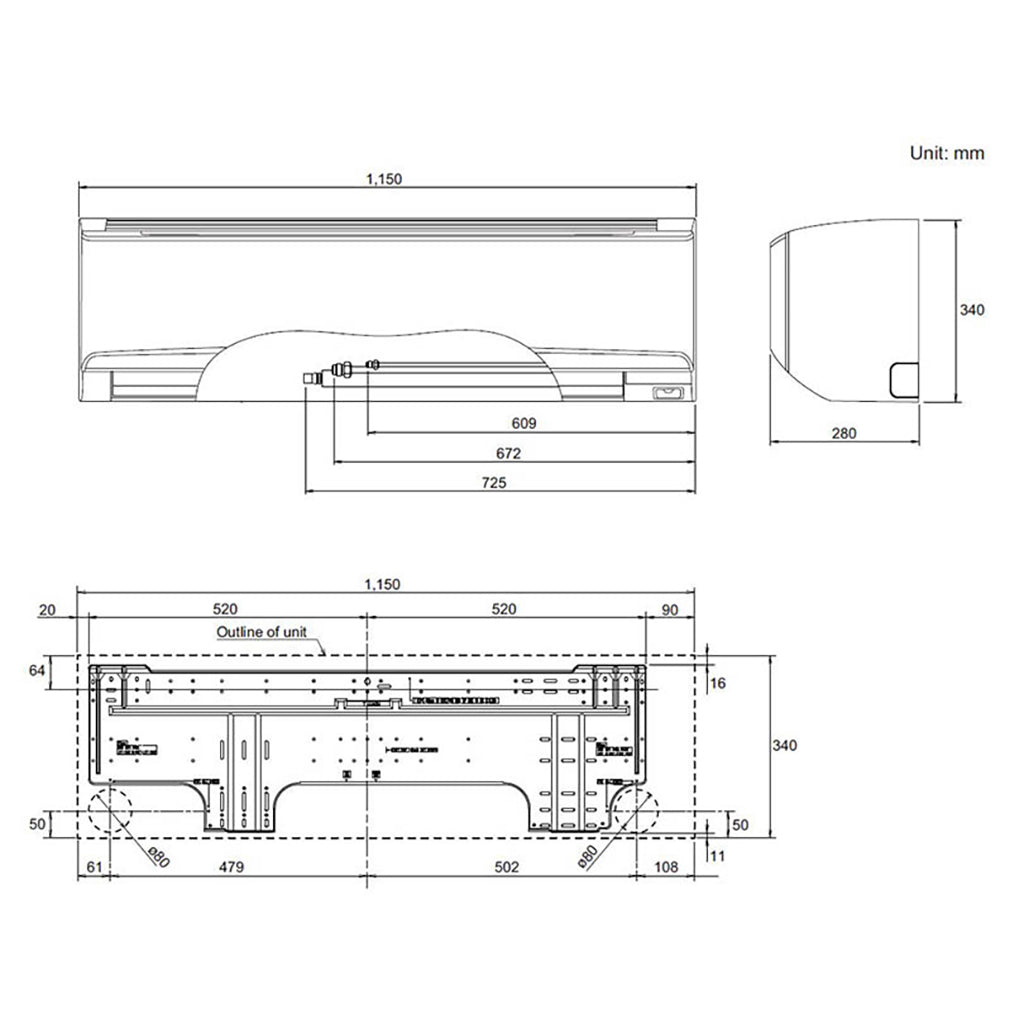

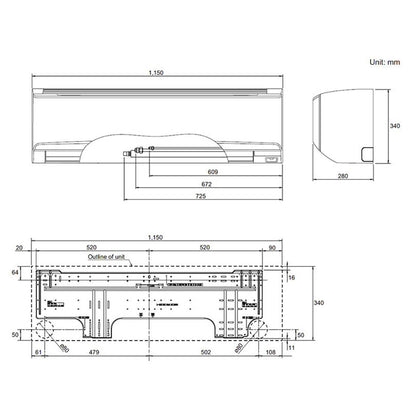

• Indoor Unit - H x W x D: 340 x 1150 x 280

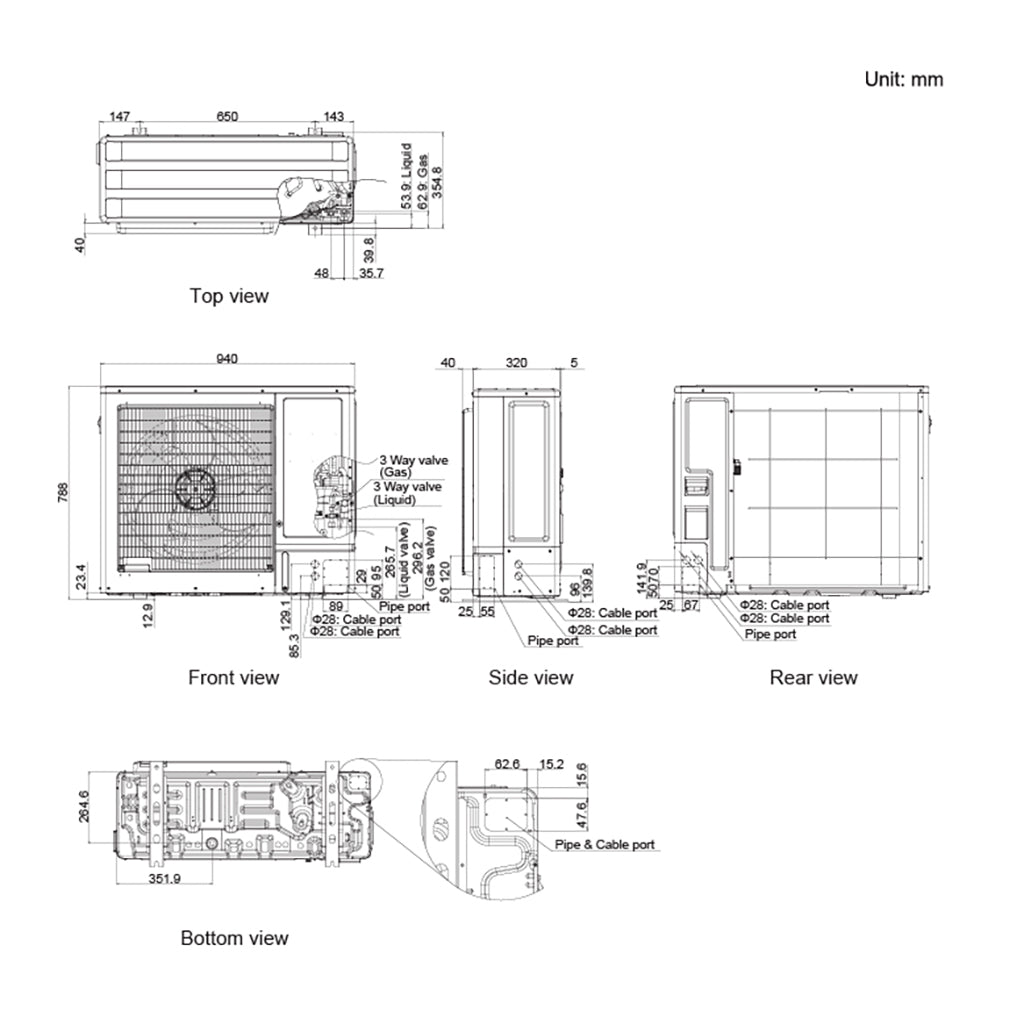

• Outdoor Unit - H x W x D: 788 x 940 x 320
• Indoor Weight: 16.5KG
• Outdoor Weight: 53KG

Please refer to the datasheet for more detailed information:

DATASHEET
