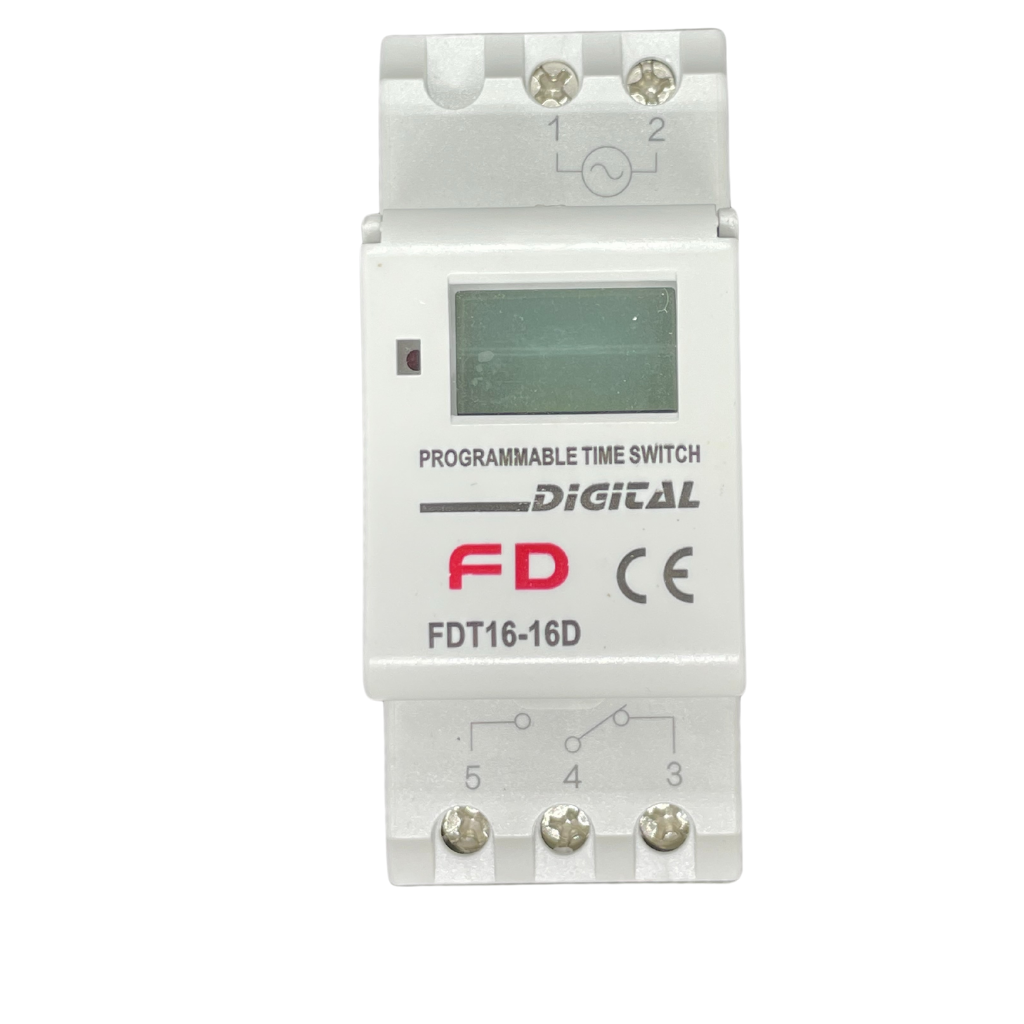

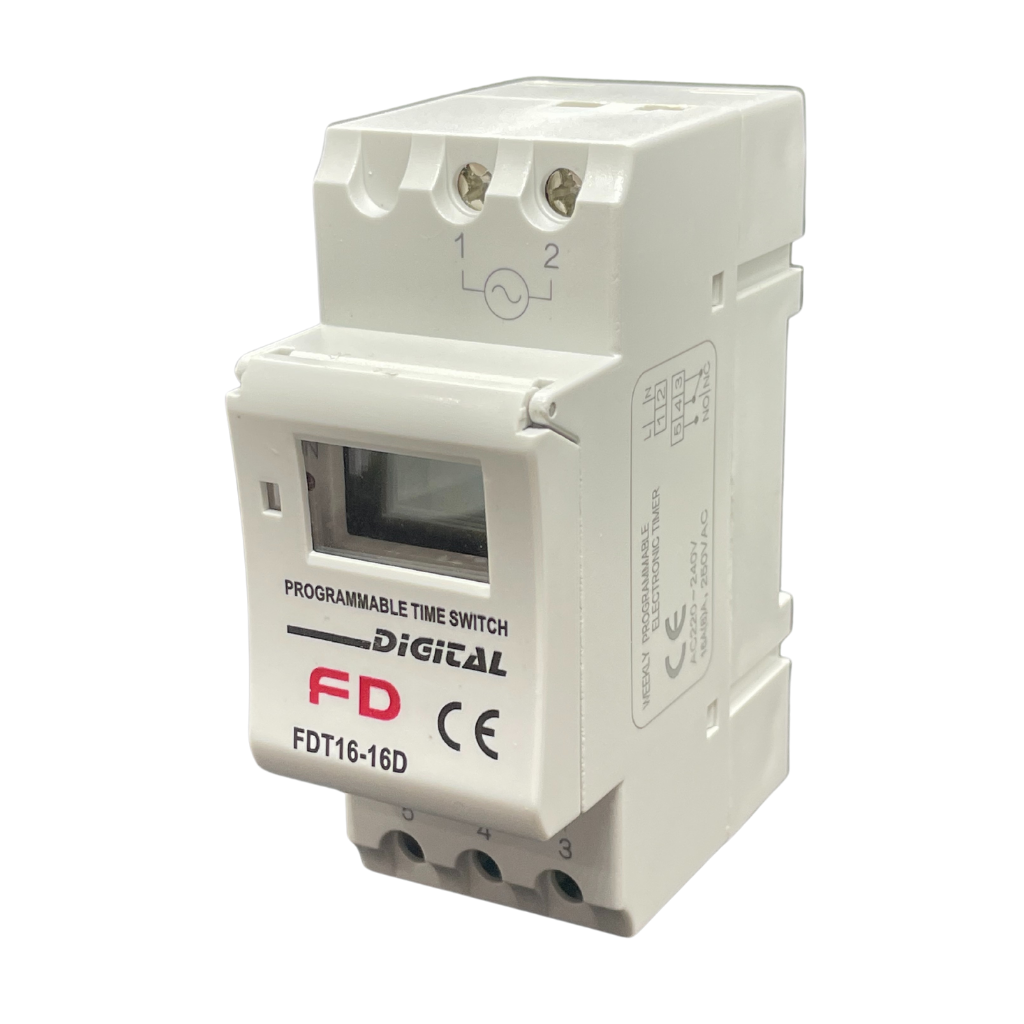

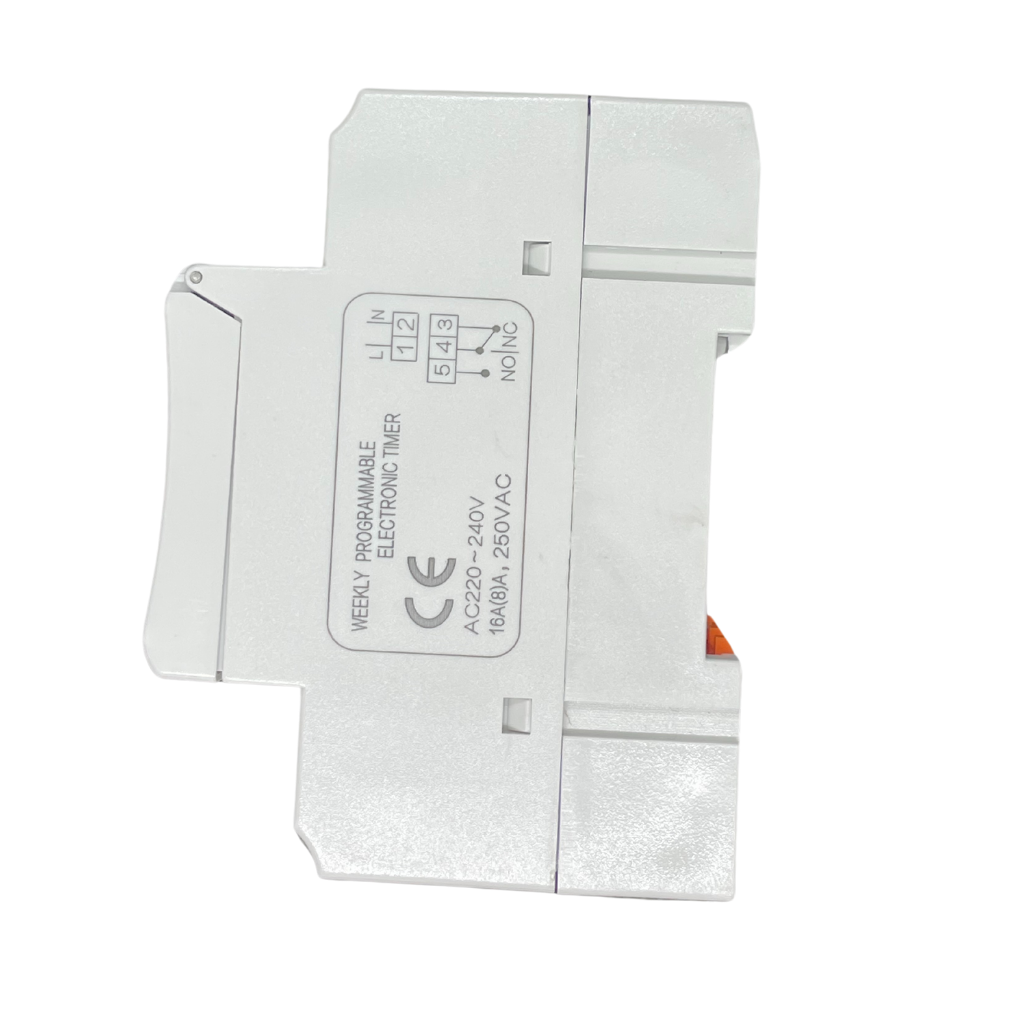

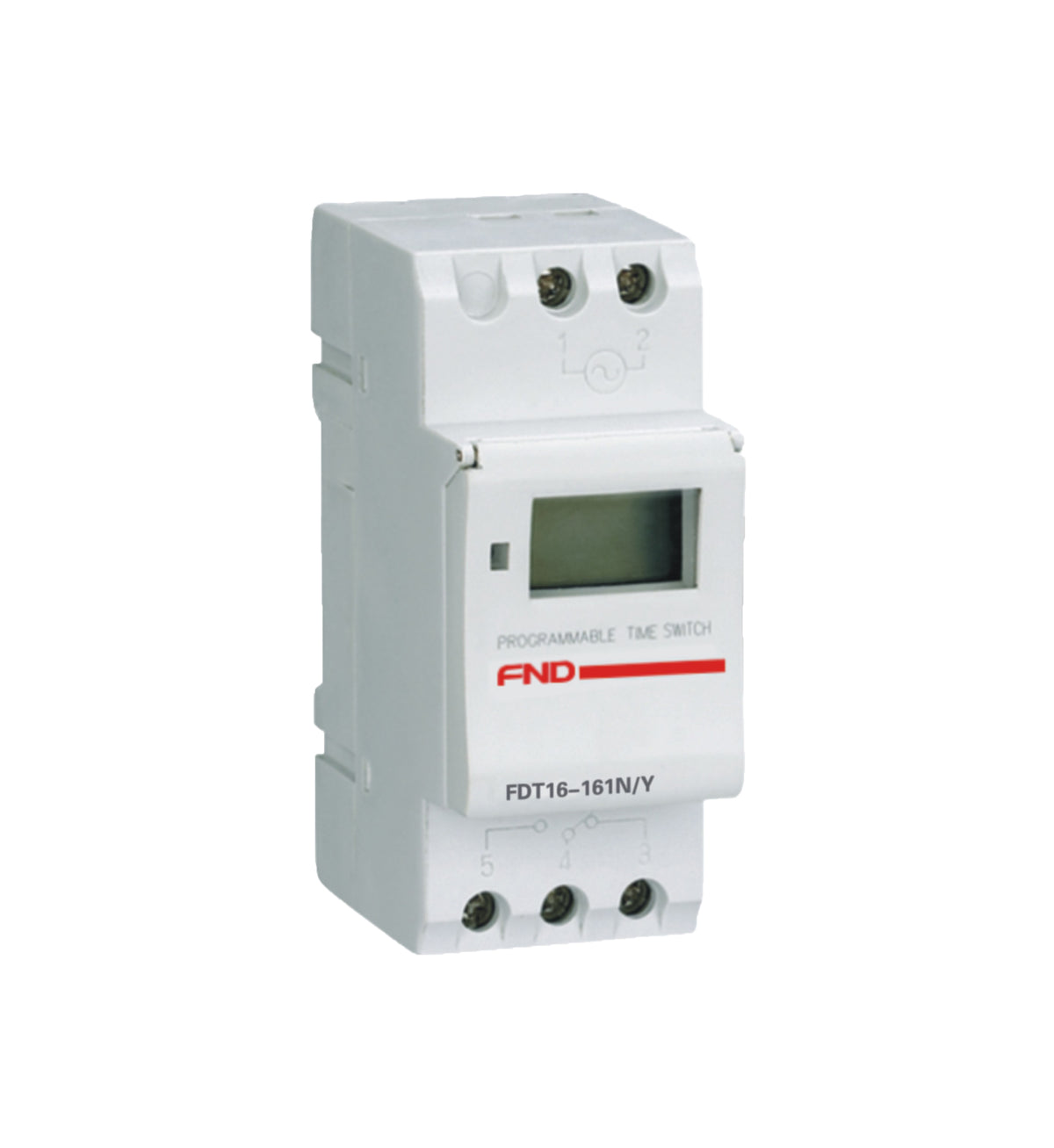

DIN Rail Mount Digital Programmable Timer with LCD Display 16A 250V

Name: DIN Rail Mount Digital Programmable Timer with LCD Display 16A 250V
Brand: Unbranded
SKU: DT16
Price: 38.99 AUD
Availability: InStock

SKU:DT16

$38.99 AUD

Special Sold out

Tax included. Shipping calculated at checkout.

Quantity

Shipping & Returns

Shipping fee will calculated at check out.

We guarantee that orders placed before 11 am will be dispatched the same day (subject to stock availability), exclude weekends and holidays. After receiving your order confirmation message, you will receive another notification when your order has shipped.

Description

Feature

Compact modular size
LCD Display
Equipped with back-up battery
Permanent switch ON/OFF

Technical Data

Rated voltage: 230V AC
Rated frequency: 50/60Hz
Contact: 1NO+1NC
Consumption: maximum 4VA
Contact capacity: 2.5A/250V AC (COSφ=0.6)
Incandescent lamp: 1000W
Electrical endurance: 105cycles
Mechanical endurance: 107cycles
Time basis: quartz
24 hours+ week program
Min. programmable interval: 1minute
Connection terminal: pillar terminal with clamp
Connection capacity: Rigid conductor 6mm2

Installation Required

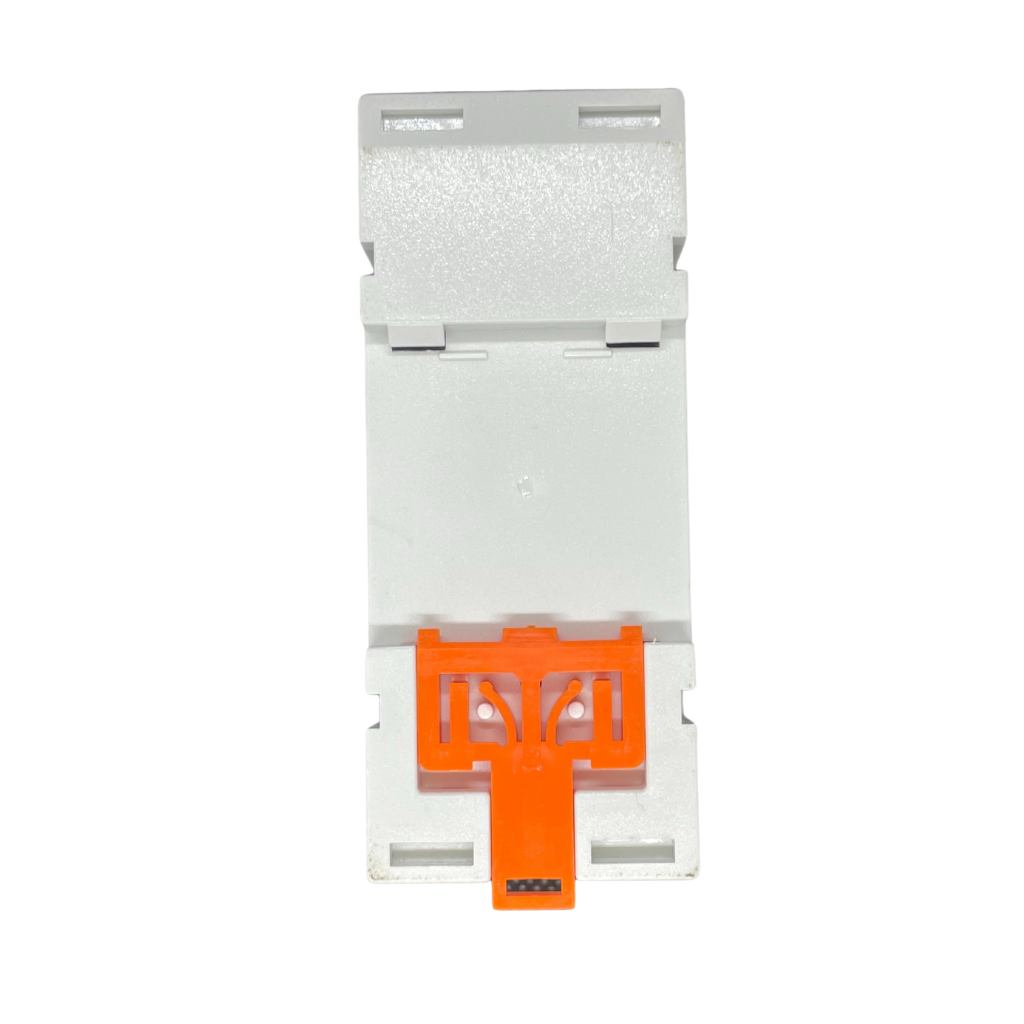

On symmetrical DIN rail
Panel mounting

Download Document

User Manual

Specification

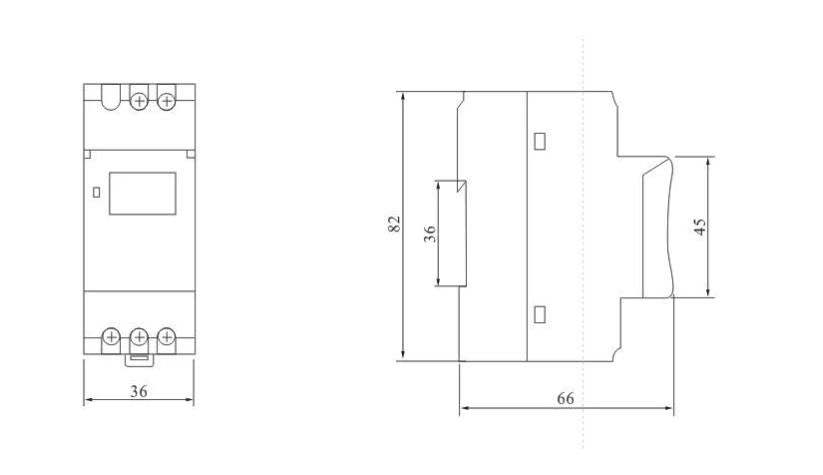

Dimension & Weight
