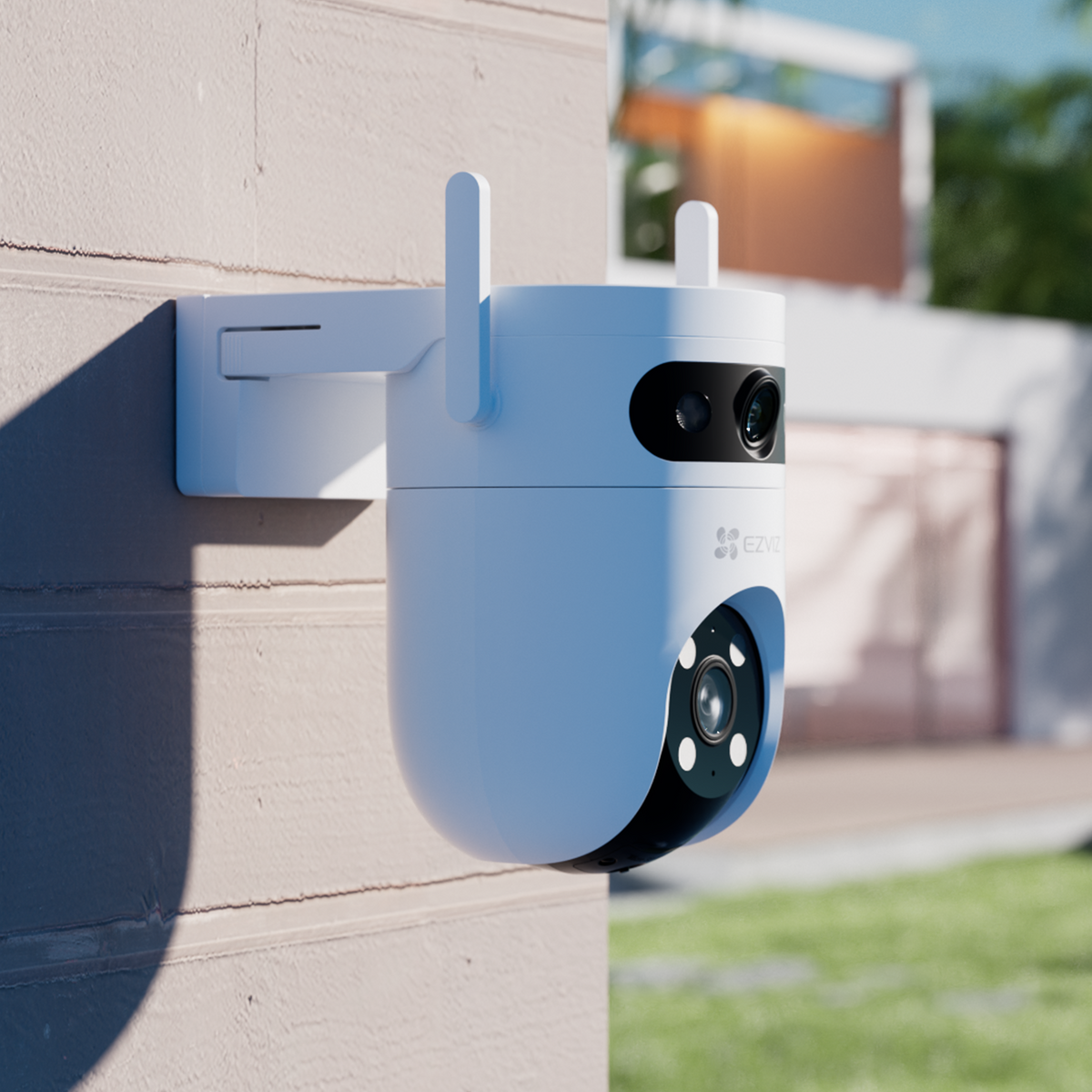

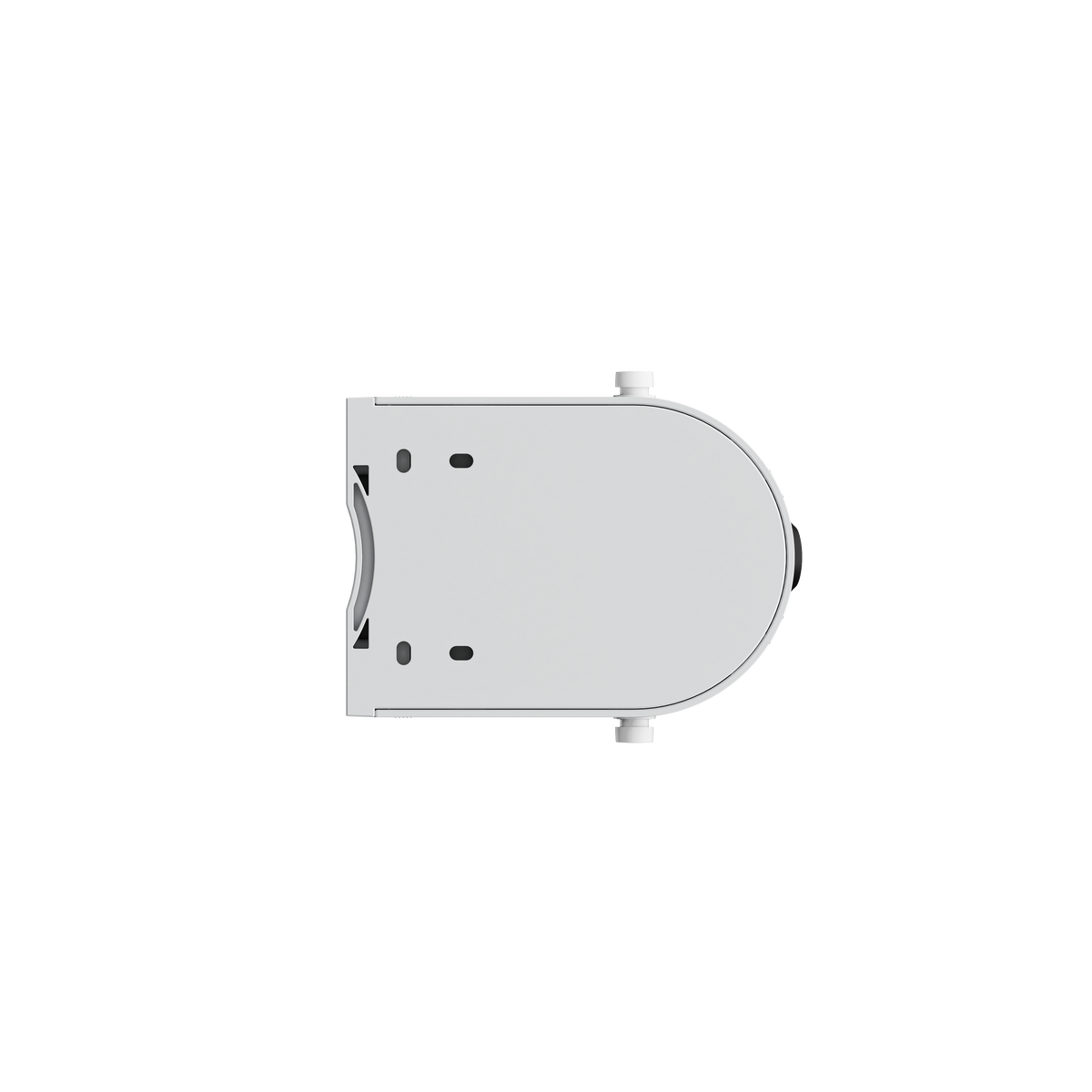

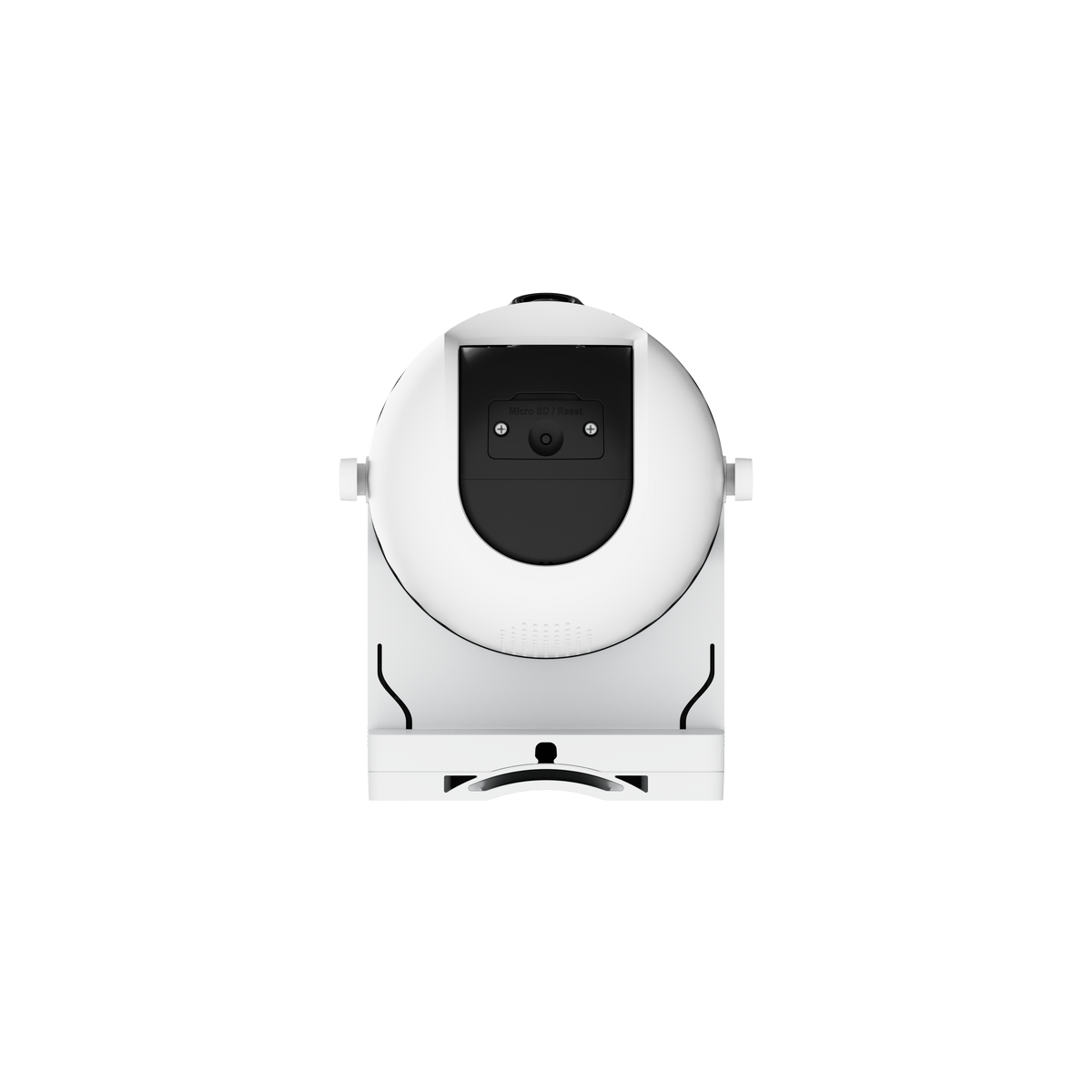

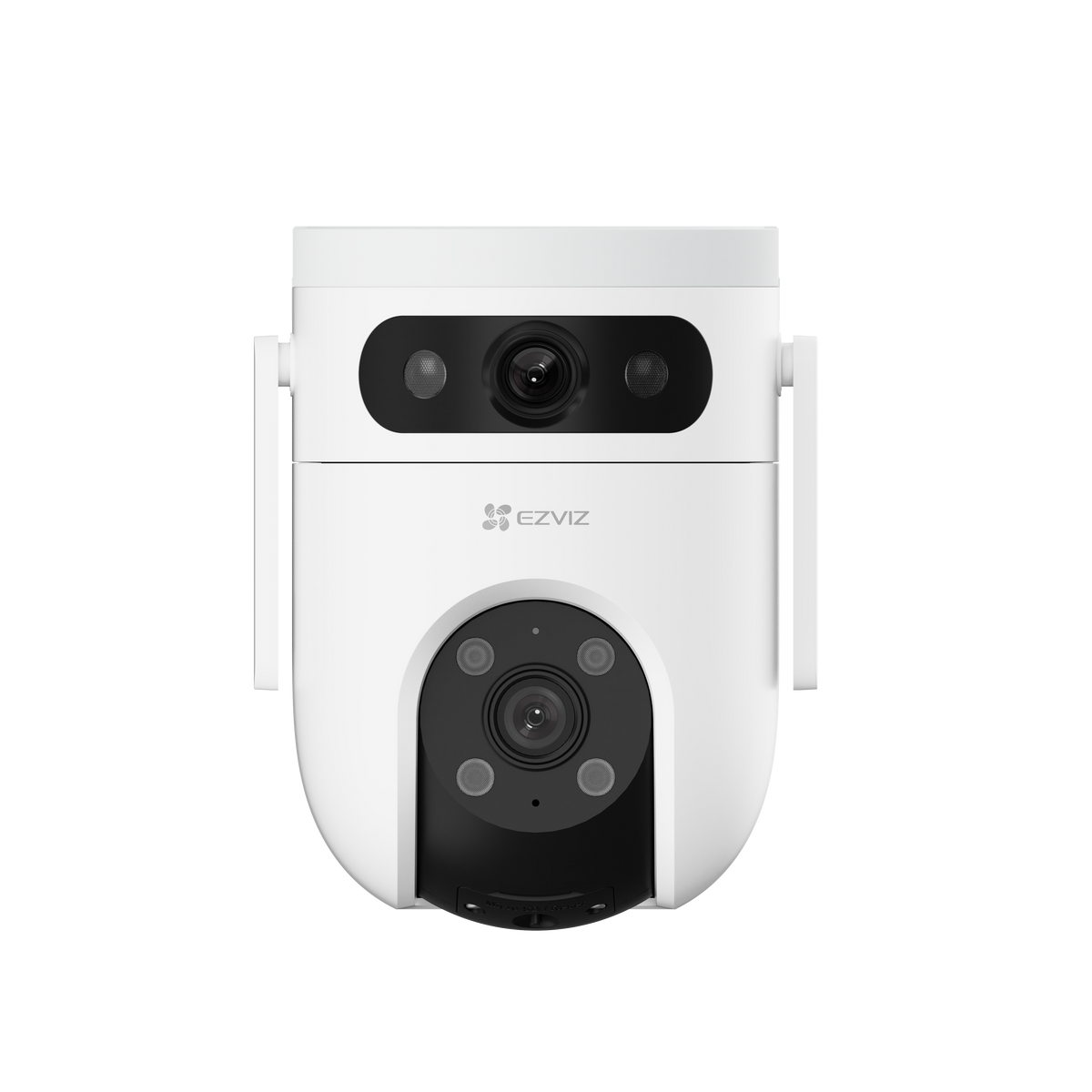

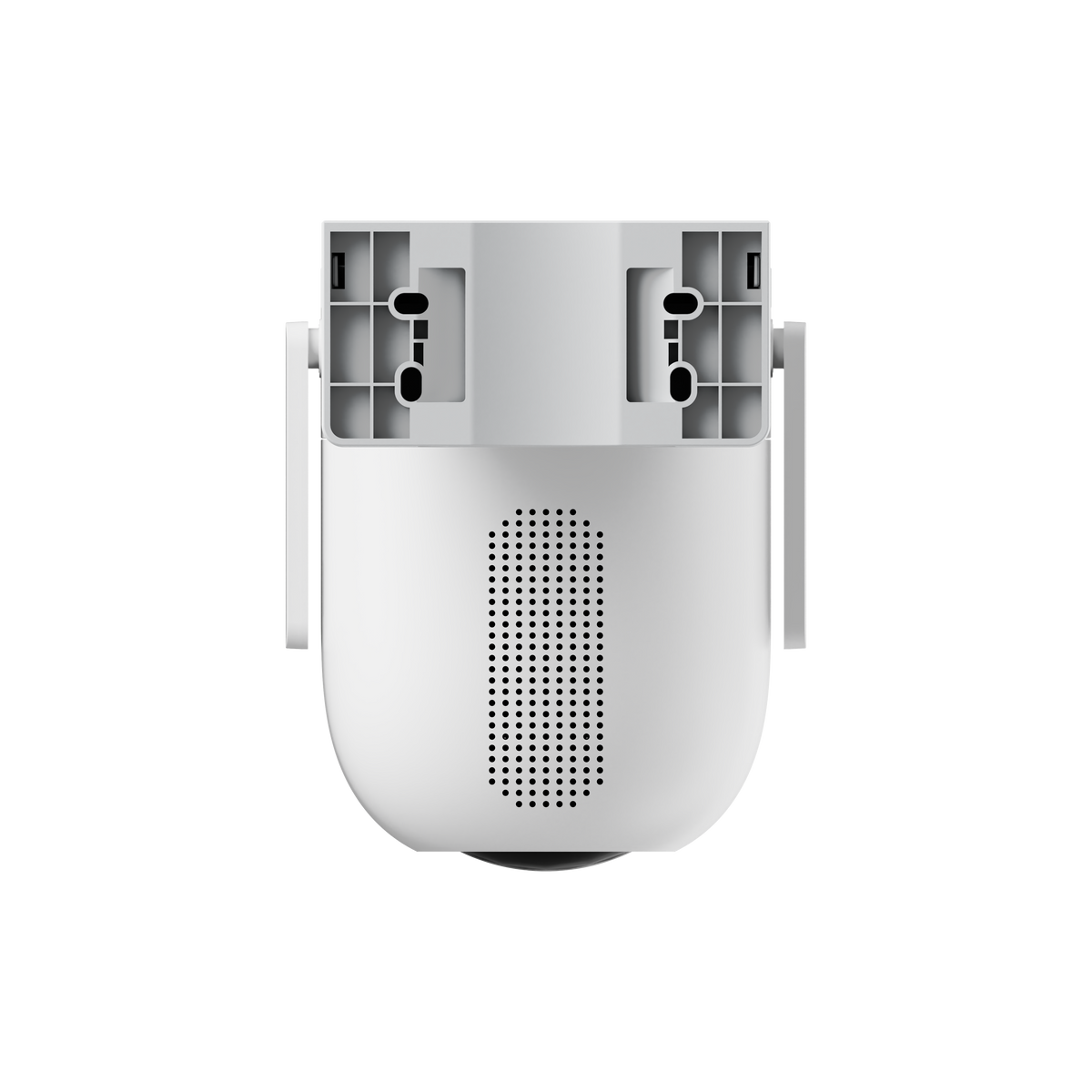

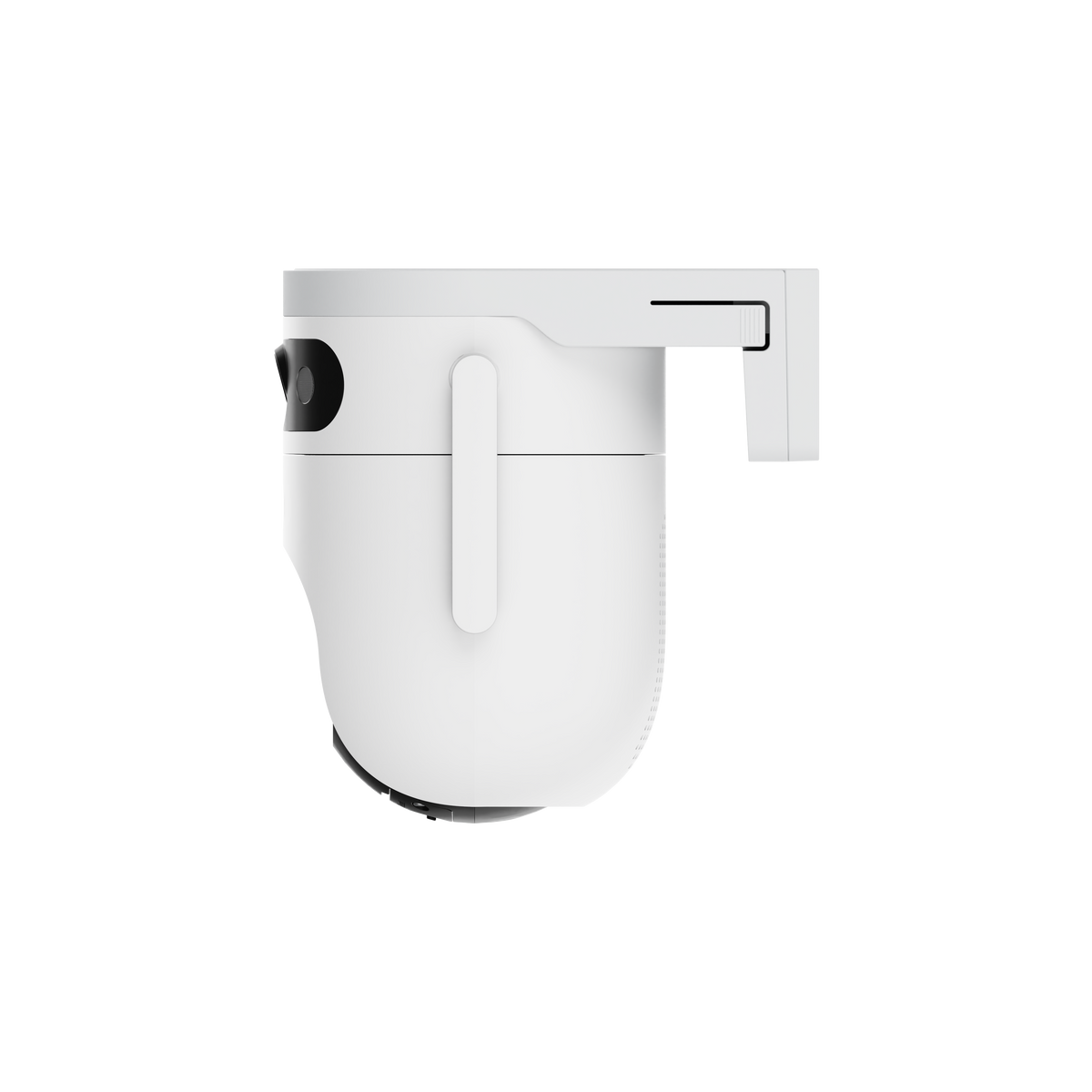

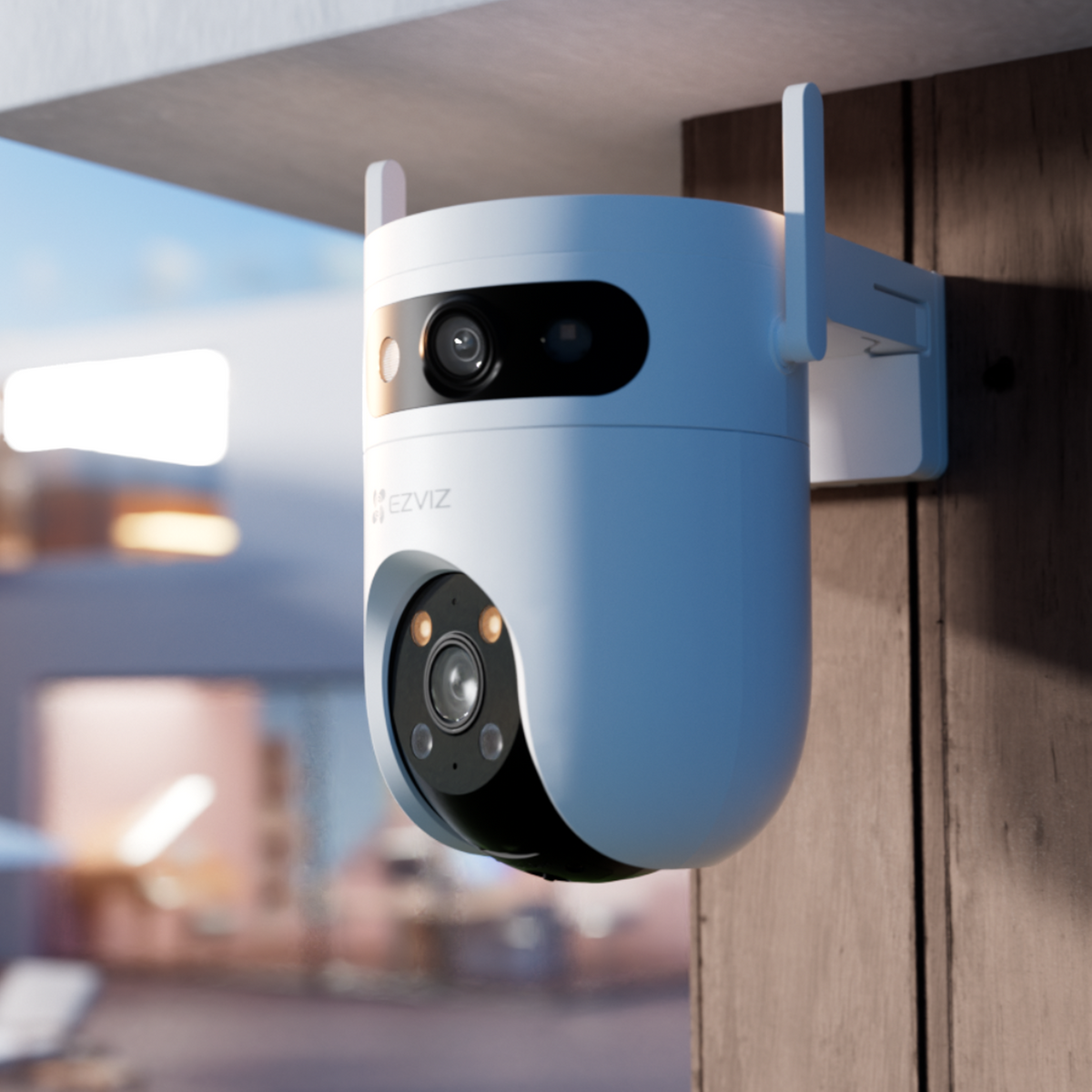

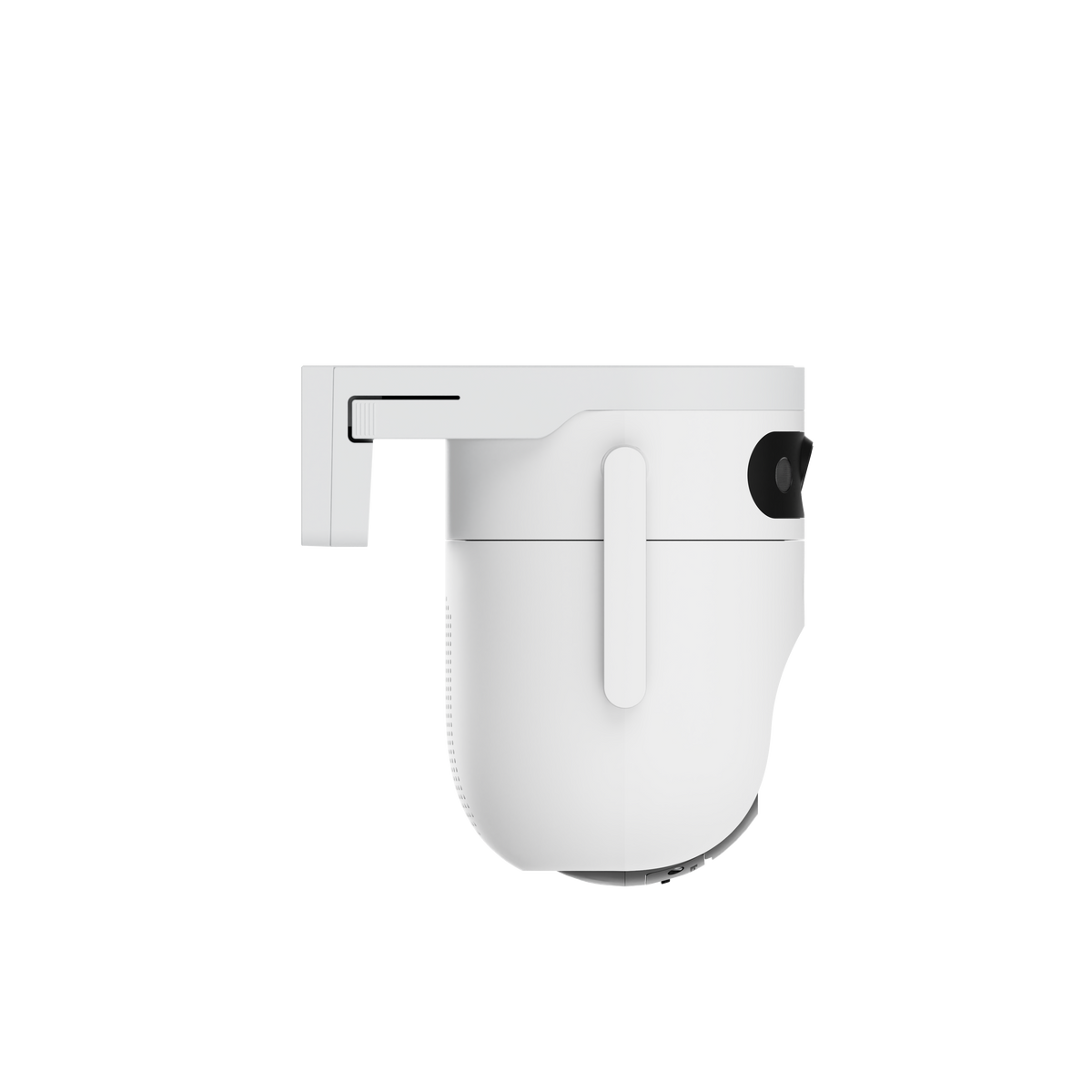

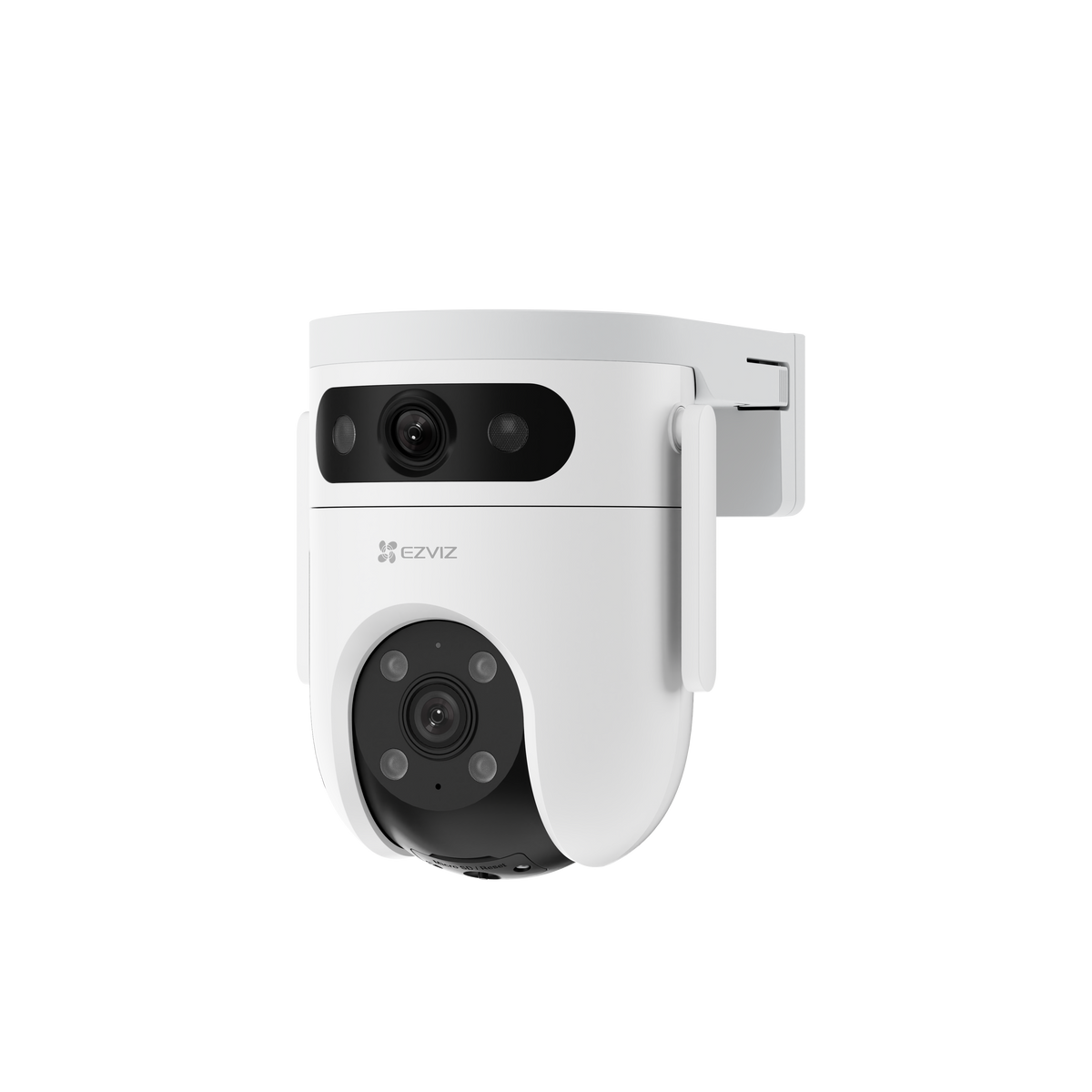

Model: CS-H9c-R100-8G55WKFL

Camera

Image Sensor: 1/2.7" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°,
Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°

PT Angle: Pan: 350°, Tilt: 80°

Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Black & White Night: 30m / 98ft

Video & Audio

Max Resolution: 2880 × 1620

Frame Rate: Max:15fps; Self-Adaptive during network
transmission

Video Compression: H.265 / H.264

H.265 Type: Main Profile

Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps

Wi-Fi Pairing: AP paring

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Wired Network: RJ45 × 1 (10M / 100M AdaptiveEthernet Port)

Security: WPA-PSK/WPA2-PSK

Functions

Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection

Auto Tracking: Supports

Customized Alert Area: Supports

Two-way Talk: Supports

Preset Locations: Supports

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage: Supports microSD Card (Up to 512 GB)

Cloud Storage: EZVIZ CloudPlay storage

General

Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)

IP Grade: Weatherproof Design

Power Supply: DC 12V/1.5A

Power Consumption: MAX. 12W

Dimension

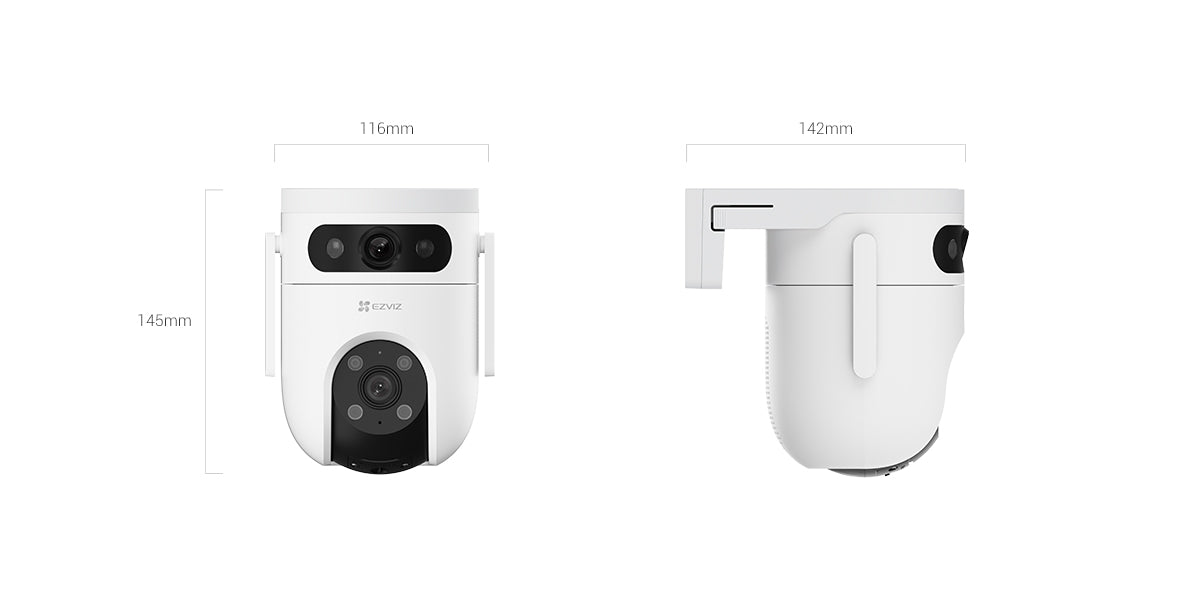

Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)

Packaging Dimensions: 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)

Weight

Net Weight: 668 g

With Package: 960 g

Downloadable Document:

CS-H9C Datasheet
