Camera Parameters

Image sensor: 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed: Self-adaptive shutter

Lens: 2.8mm@ F1.6 Diagonal angle: 135° Horizontal angle: 113° Vertical angle: 60°

Day & Night: IR-cut filter with auto switch

DNR: 3D DNR

Night Vision: IR Distance: 15m, Color Night Vision Distance: 15m

Video & Audio

Max Resolution: 3840*2160/4K/8MP

Frame Rate: 15fps. Self-Adaptive during network transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 4 Mbps

Function

Smart Alarm: AI Human Detection, Vehicle Detection

Two-way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Network

Bluetooth: Supports

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ax

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Support: 20MHz

Security: WPA-PSK/WPA2-PSK, WPA3-Personal

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps

Wi-Fi Pairing: AP pairing

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Minimum Network Requirement: 8 Mbps

General

Operating Conditions: -20°C to 50°C (-4°F to 122 °F), Humidity 95% or less (non-condensing)

IP Grade: IP65

Power Supply: DC 5V/2A (Compatible power adapter needs to be purchased separately)

Battery Capacity: 10400 mAh

Power Consumption: Max. 10W

Dimension

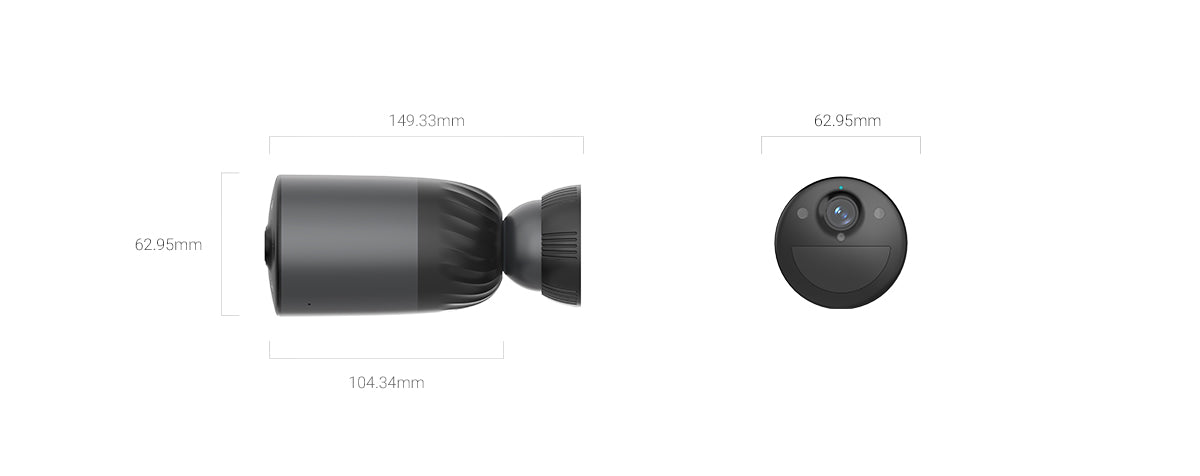

Product Dimensions: 149.33mm x 62.95mm x 62.95mm

Packaging Dimensions: 103x103x186mm

Weight

Net Weight: 348g, With Package: 671g

Downloadable Document:

CS-BC1C Pro Datasheet
