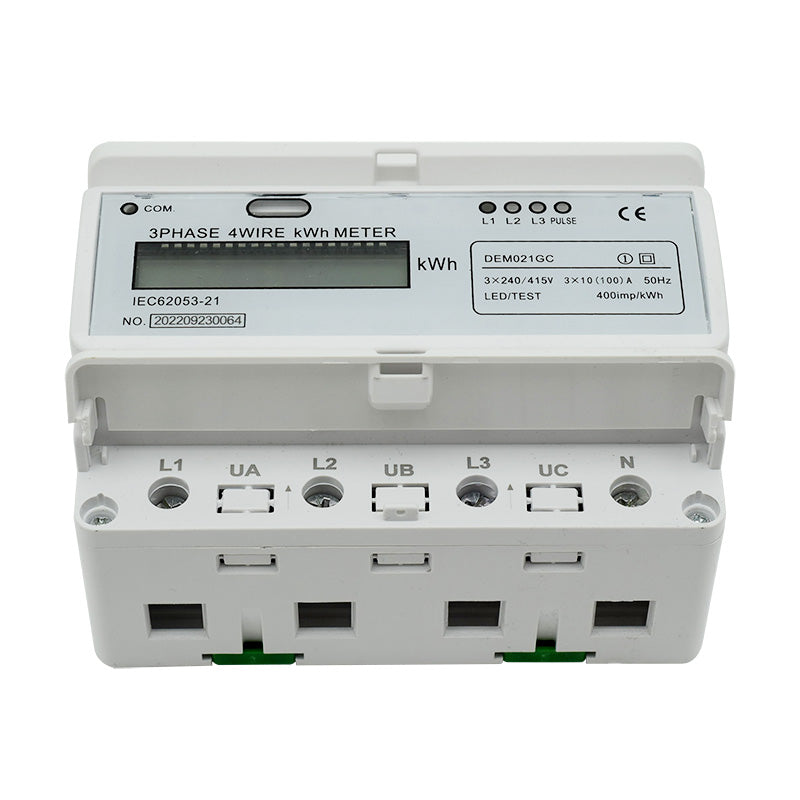

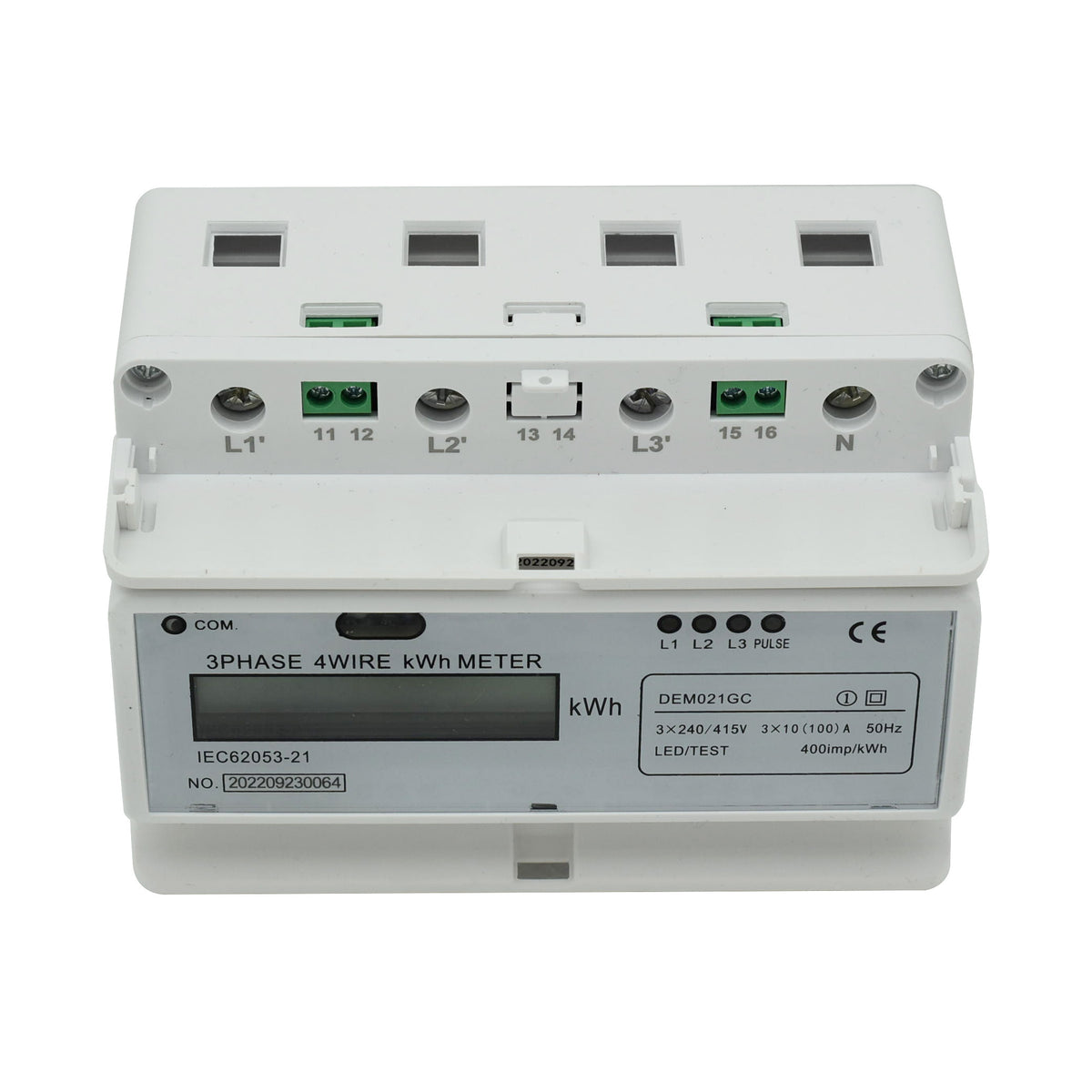

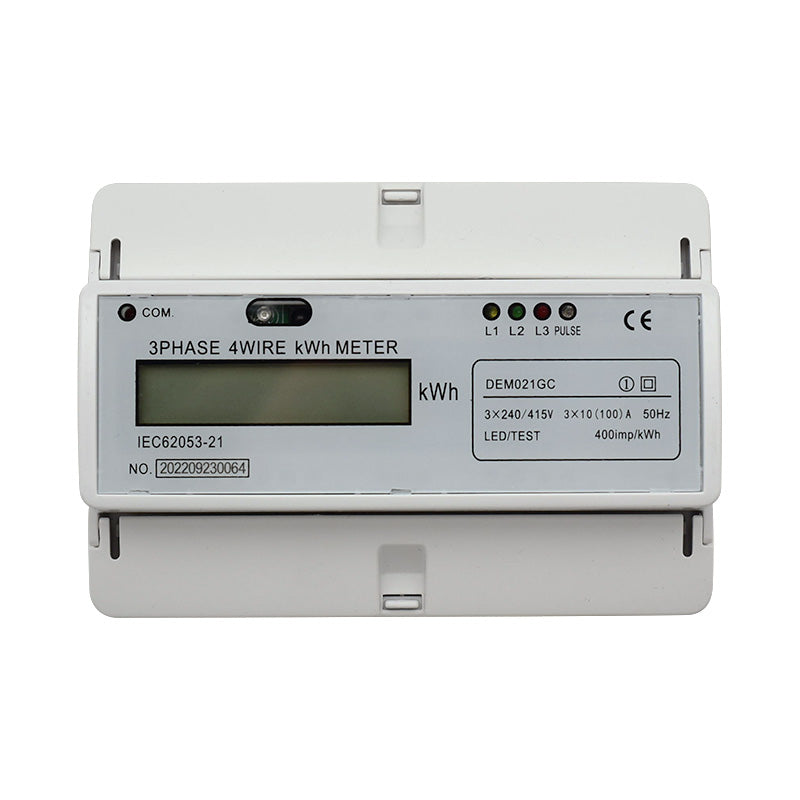

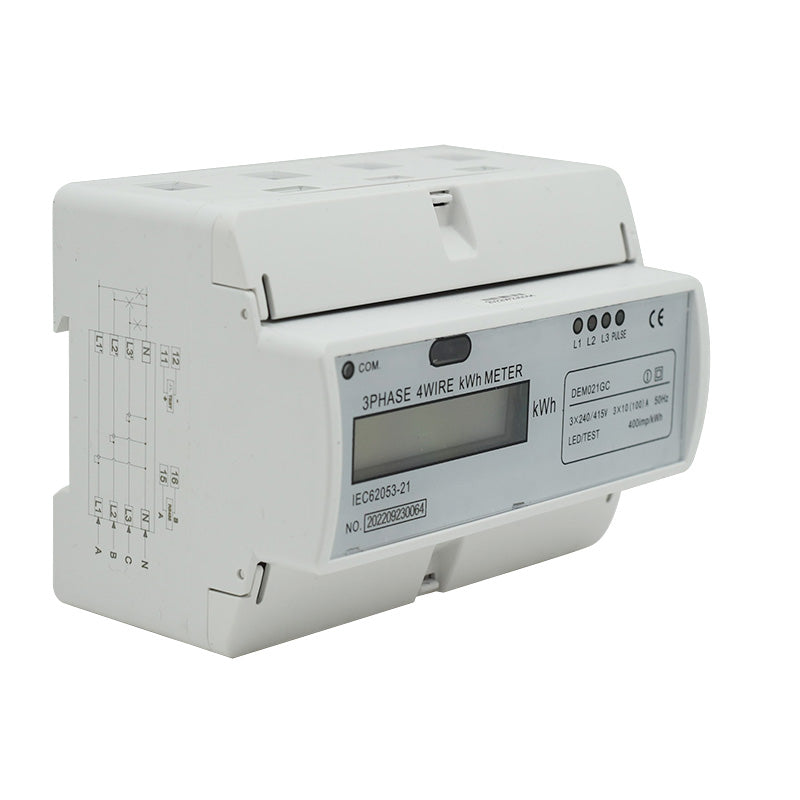

Kilowatt Hour Meter Din Rail 3 Phase Digital LCD
·Digital LCD Three Phase Meter Din Rail
·Four Wire Energy 240V 20A/100A
·User Manual enclosed with the package
Characteristics and Range of application:
This three phase DIN-rail type electronic meter is a kind of new style three phase whole electronic type meter, and adopts up-to-date micro-electronics techniques and imported special large-scale integrated circuits, using advanced technique of digital sampling techniques and SMT technology, etc. The meter is completely conformed to the relative requirements of the National Standard GB/T17215-2002 and International Standard IEC62053-21 on the meter(Class 1 or Class 2).

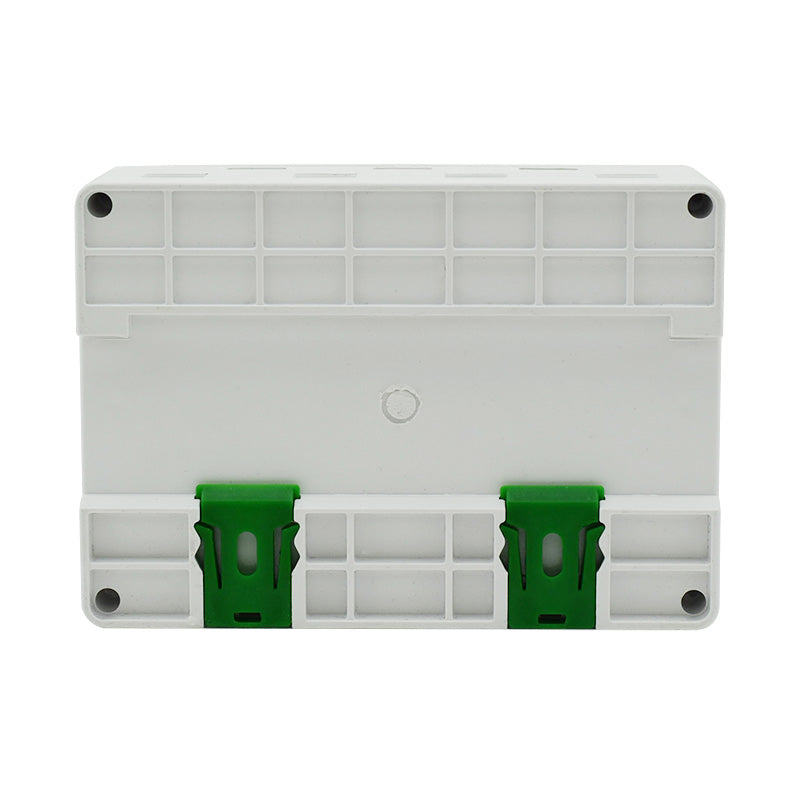

The meter is used for measuring active energy power consumption in a rated frequency of 50Hz or 60Hthree phase alternating current circuit. It can accurately and directly measure active energy consumption from positive and reverse directions. It has the following features: Good reliability, small volume, light weight, specious nice appearance, advanced technology. It can choose many kinds of installation ways such as 35mm standard rail.
The meter is installed indoors. The site conditions shall be assumed as follows: The ambient temperature is-25~55℃ and relative humidity is not more than 95%. There isn't heavy corrosive gas or any influence of dust, mold, and insects, etc.
