• Model: CS-SD7-R100-1WTC
• Screen size: 6.97 inch
• Resolution: 1024 × 600
• Touch Screen: Supports
• Screen Type: IPS Full Screen
• Battery Capacity: 4600 mAh
• .Audio Input: Built-in high-sensitivity microphone
• Audio Output: Built-in high-power speaker
• Button: One-switch button
• Maximum Access Pixels: Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)
• Connected Device: 4K (Playback supports 5MP maximum)
• Protocol: EZVIZ Cloud Proprietary Protocol

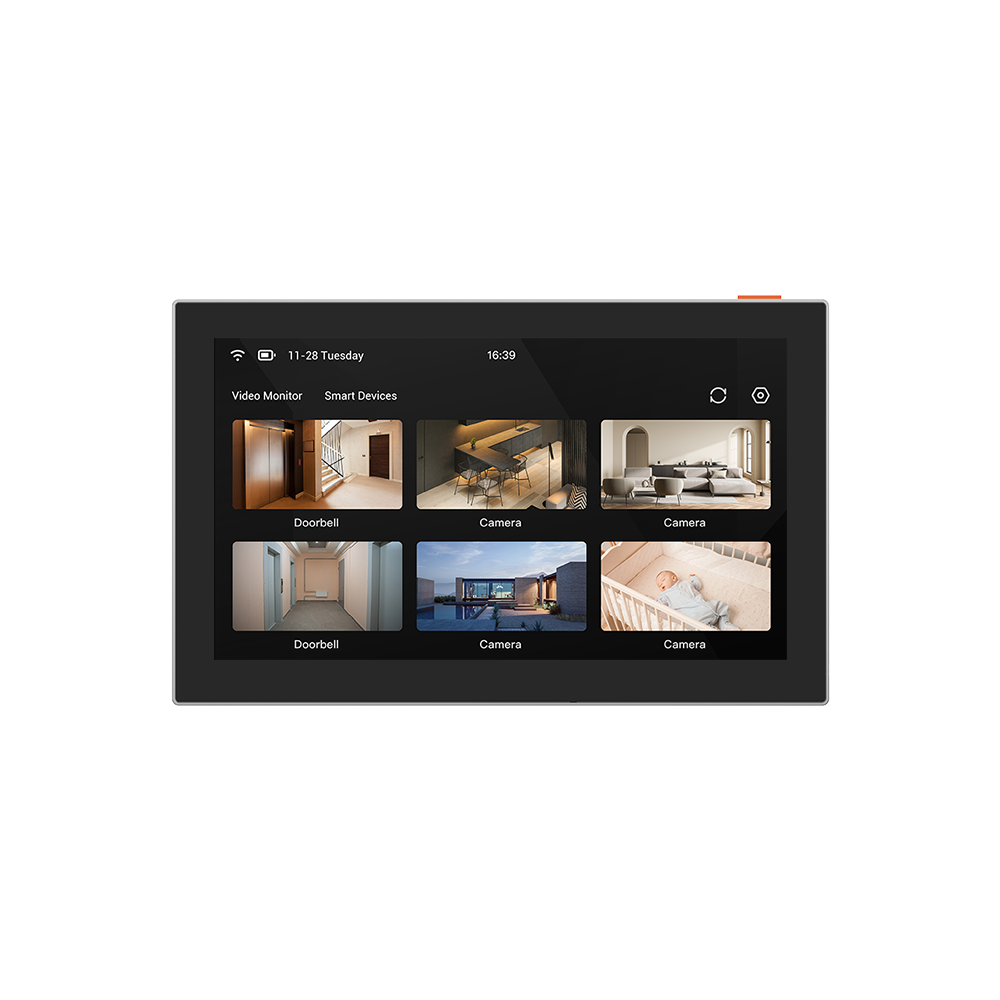

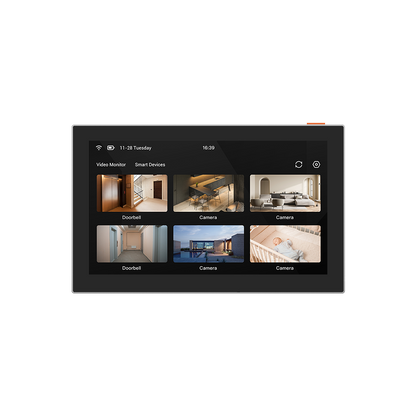

• General Function: Live View, Video Playback, Cloud Video Encryption
• Wireless Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Safety: 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
• Operating Temperature: 0°C to 40°C
• Operating Humidity: less than 95% (No condensation)

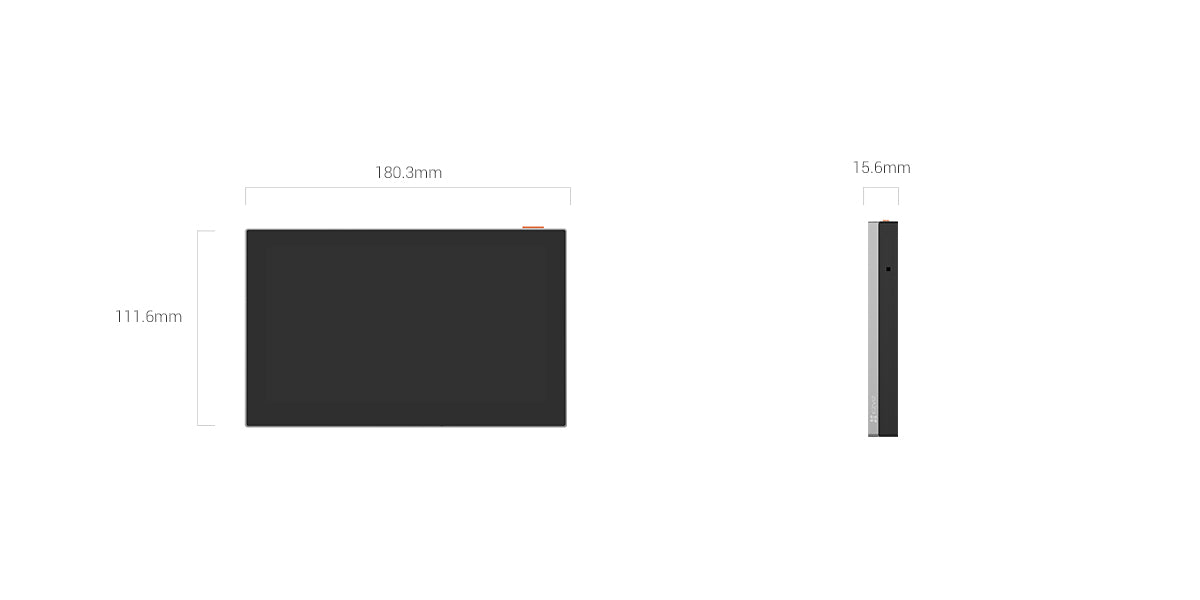

Product Size: 180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)

What's included:

• SD7 Smart Screen
• Type-C Cable

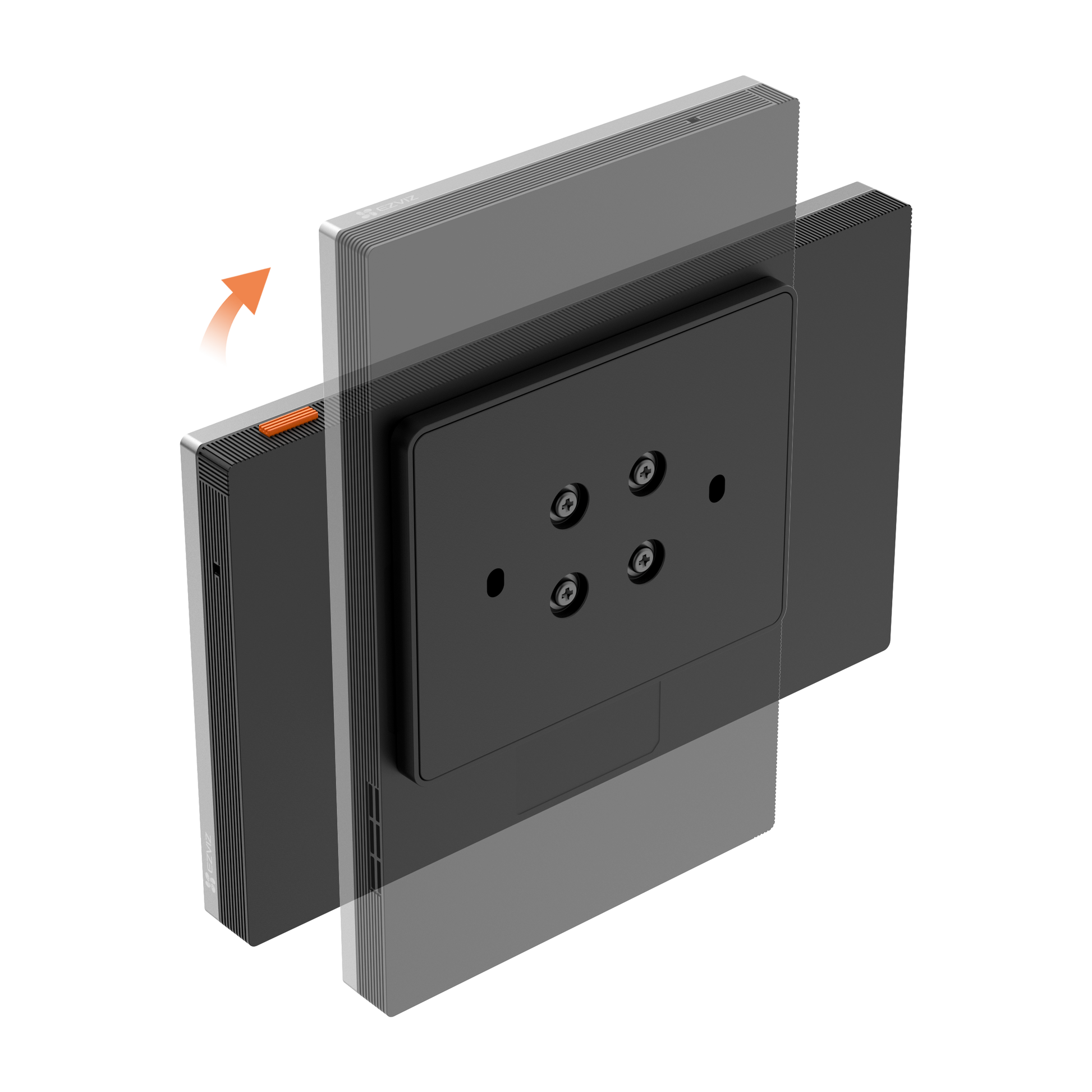

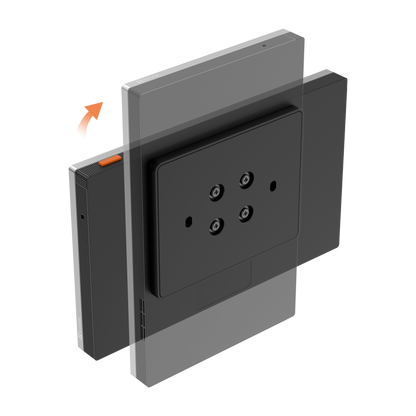

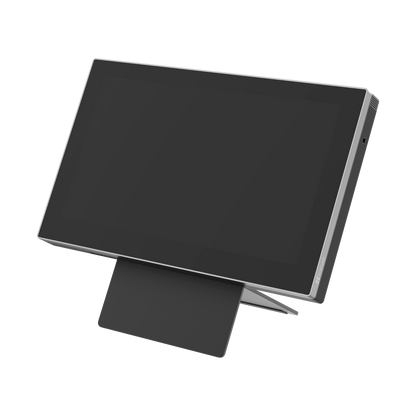

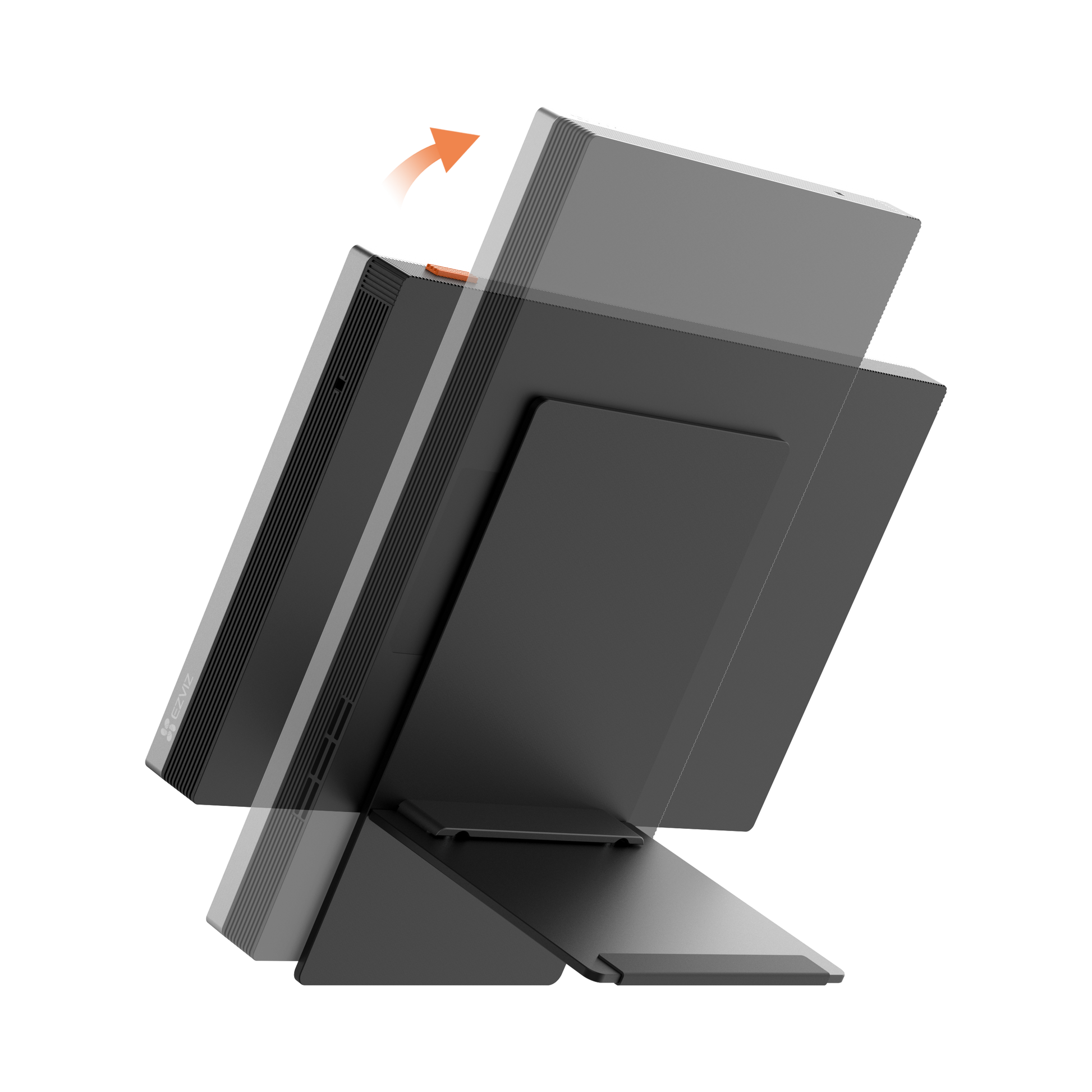

• Wall Bracket
• Installation Sticker
• Double-sided Sticker
• Screw Kit
• Quick Start Guide

Download Document:

CS-SD7 Datasheet
