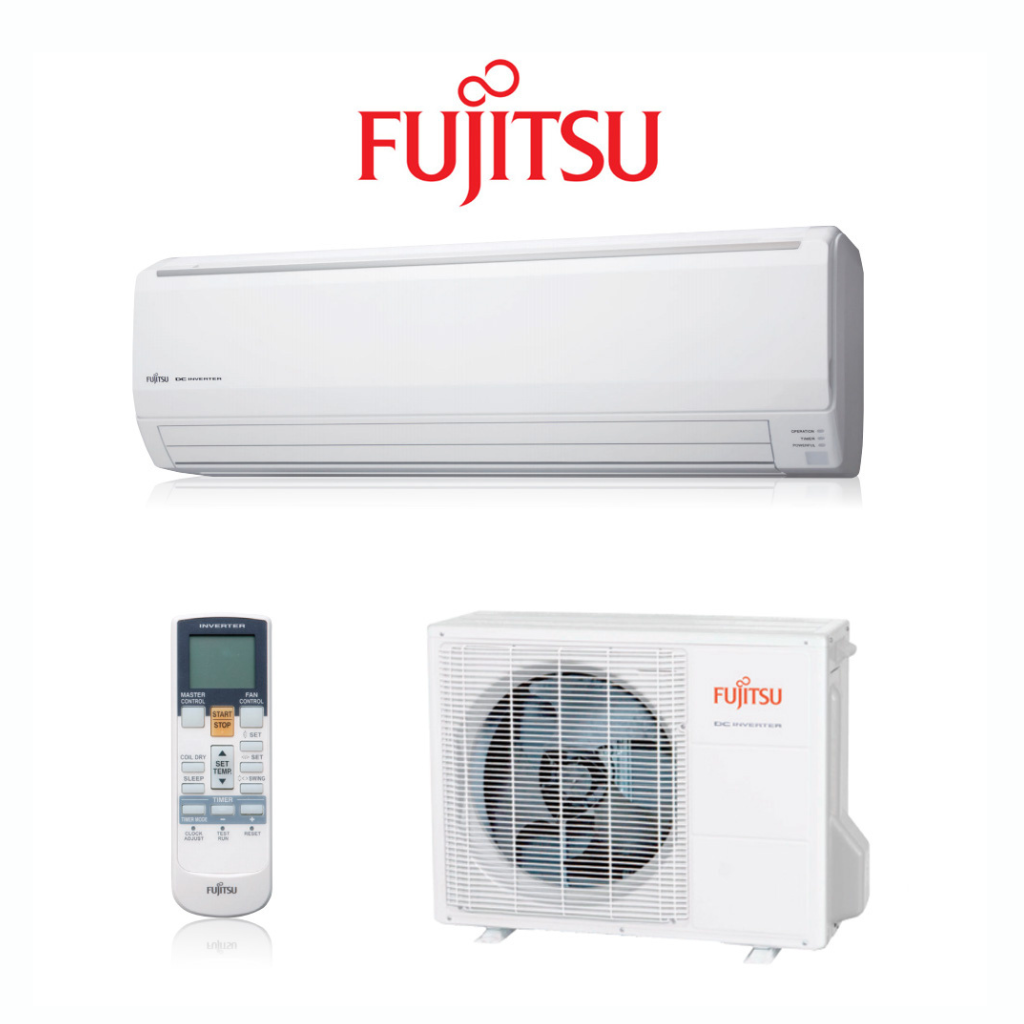

Fujitsu Comfort Series 7.1kW Wall Mounted Split System

Fujitsu Datasheet

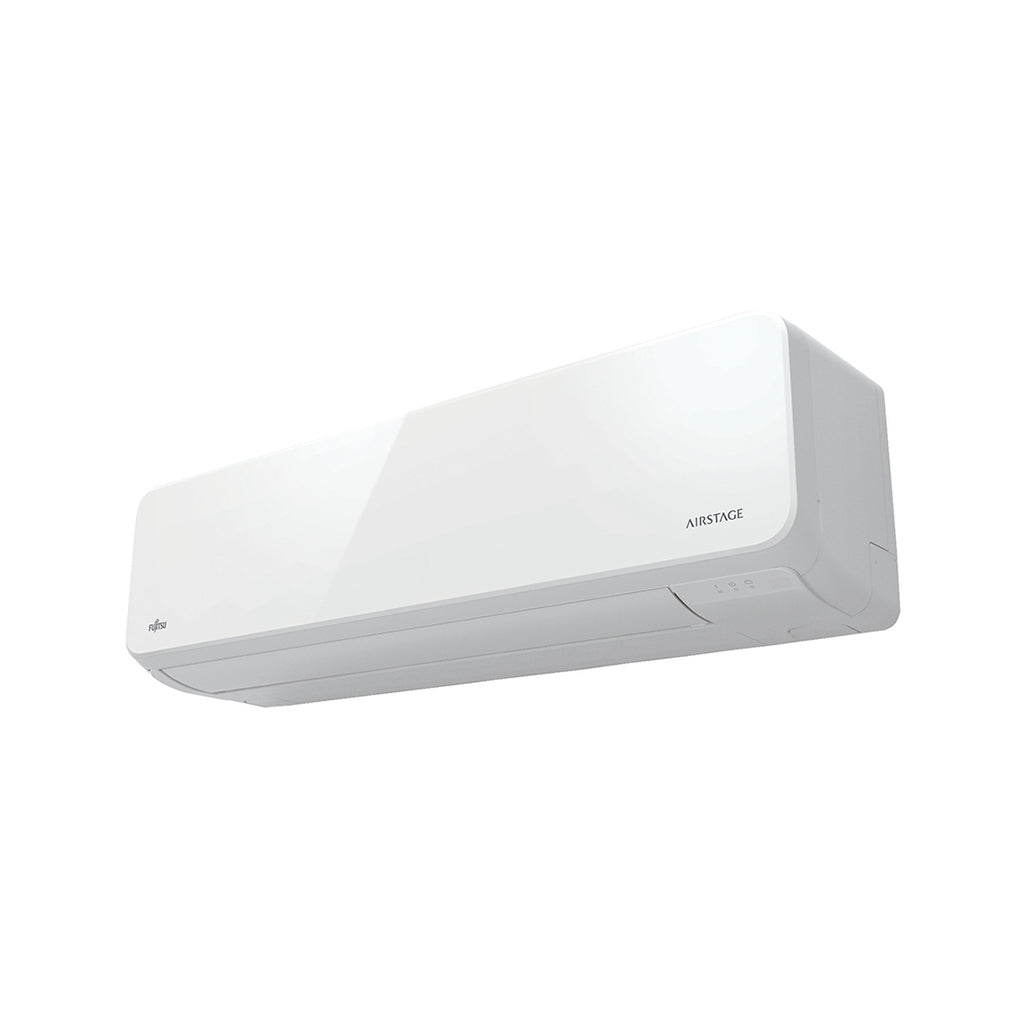

• Indoor unit: ASTH24KNTA
• Outdoor unit: AOTH24KNTA
• Operation Type: Reverse Cycle
• Power Source V/Ph/Hz: 230 / 1 / 50
• Cooling Capacity kW (Rated (Min - Max)): 7.10 (1 - 8)
• Heating Capacity kW (Rated (Min - Max)): 8.00 (1 - 9.6)
• Input Power Cooling kW (Rated (Min - Max)): 2.2 (0.16 - 3)
• Input Power Heating kW (Rated (Min - Max)): 2.08 (0.16 - 2.74)
• EER Cooling kW/kW: 3.23
• COP Heating kW/kW: 3.85

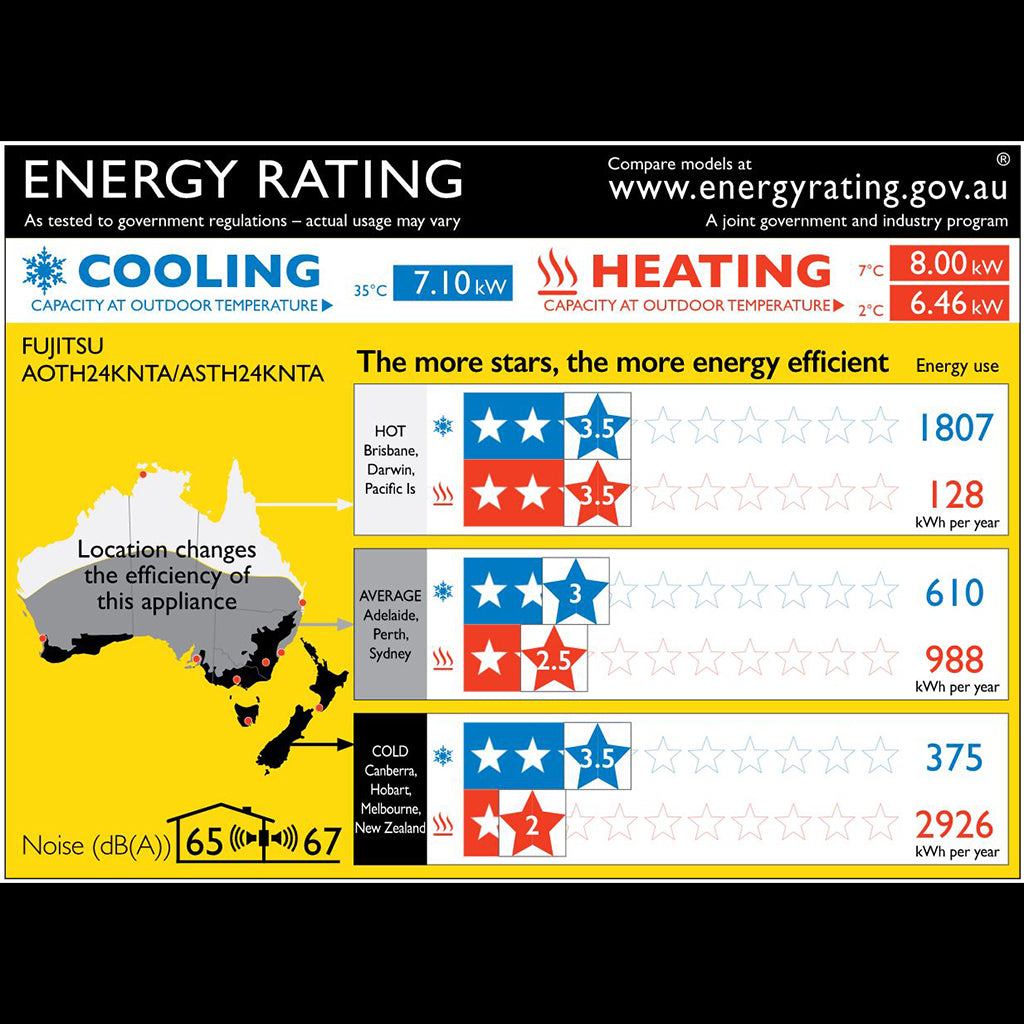

• Star Rating Cooling(0-10) (Hot / Average / Cold): 3.5 / 3 / 3.5
• Star Rating Heating(0-10) (Hot / Average / Cold): 3.5 / 2.5 / 2
• Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.639 / 5.982 / 6.66
• Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold): 5.329 / 4.407 / 3.573
• Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 5.143 / 4.897 / 5.288
• Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold): 5.35 / 4.779 / 4.047
• Running Current amps (Cooling / Heating): 9.6 / 9.2
• Moisture Removal l/hr: 3.2
• Indoor Sound Pressure Cooling dBA (High / Quiet): 50 / 31
• Indoor Sound Pressure HeatingdBA (High / Quiet): 48 / 31
• Outdoor Sound Pressured BA (Cooling / Heating): 55 / 56
• Outdoor Sound Power dBA: 67
• Air Circulation (Indoor - High Fan) Cooling l/sec: 336
• Air Circulation (Indoor - High Fan) Heating l/sec: 311
• Piping Connectsmm Ø (Liquid / Gas): 6.35 / 12.7
• Pipe Length m (Max (Precharged)): 30 (15)
• Max Height Difference: 25M
• Operation Range Cooling °CDB (Min to Max): -10 to 50
• Operation Range Heating°CDB (Min to Max): -15 to 24
• Refrigerant Type: R32
• Refrigerant Amount: 1200g

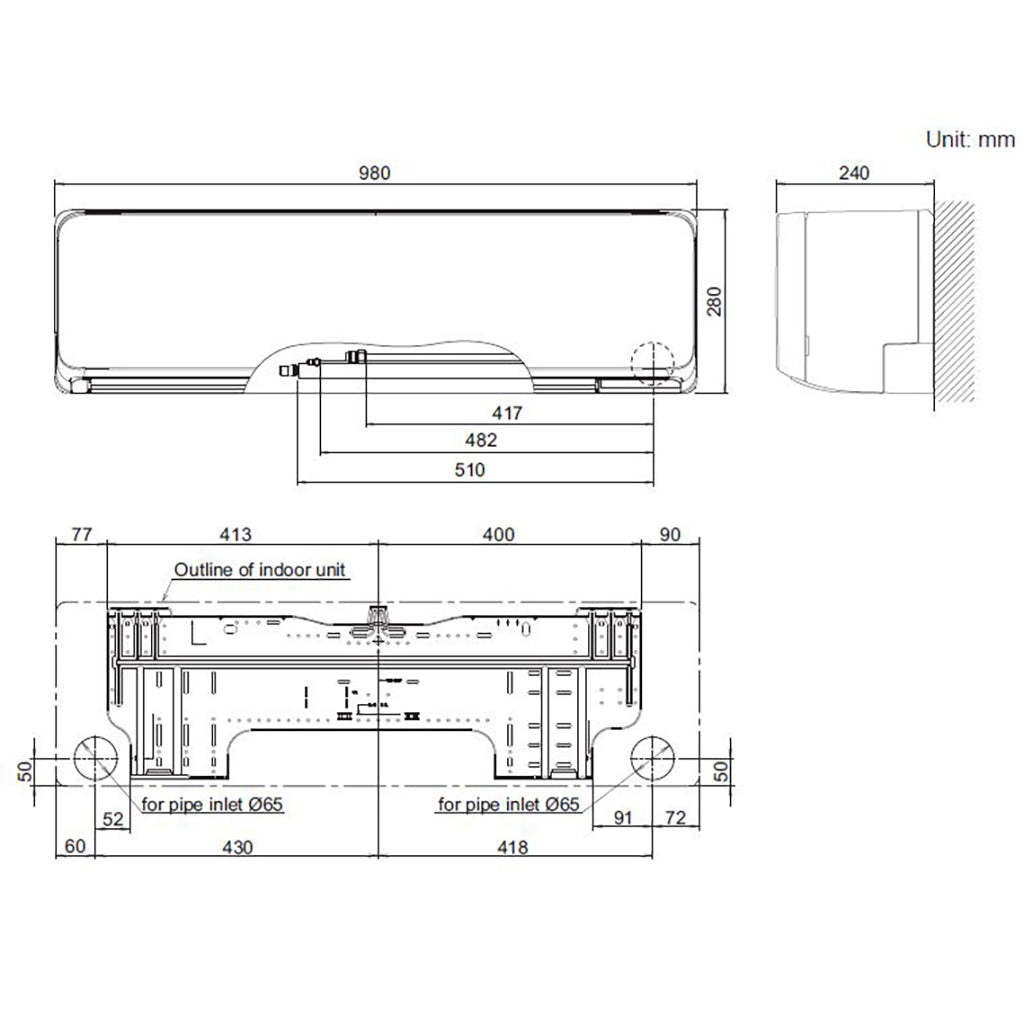

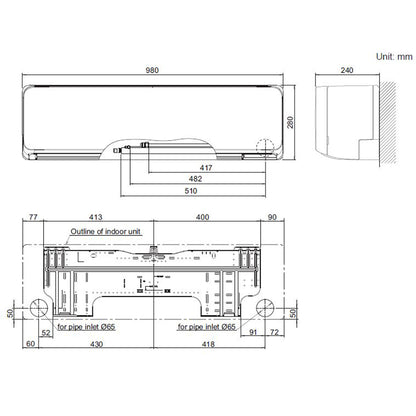

• Indoor Unit - H x W x D 280 x 980 x 240
• Outdoor Unit - H x W x D 632 x 799 x 290

Indoor Weight: 12.5KG

Outdoor Weight: 39KG
