How to Choose the Perfect Multi-Head Split System: Complete Buyer’s Guide

Choosing a multi-head split system (also known as a multi-split air conditioner) doesn’t have to be complicated. With just one outdoor unit powering multiple indoor units, you can enjoy efficient, room-by-room comfort throughout your home. Follow these three simple steps to select the right system.

Multi-head split systems are a popular choice for homeowners who want zoned comfort across multiple rooms without installing a full ducted system or multiple outdoor units.

With one outdoor unit connected to 2–5 indoor units, they offer a clean, efficient, and flexible solution. However, there are important things you should know before buying.

How Multi-Head Split Systems Work

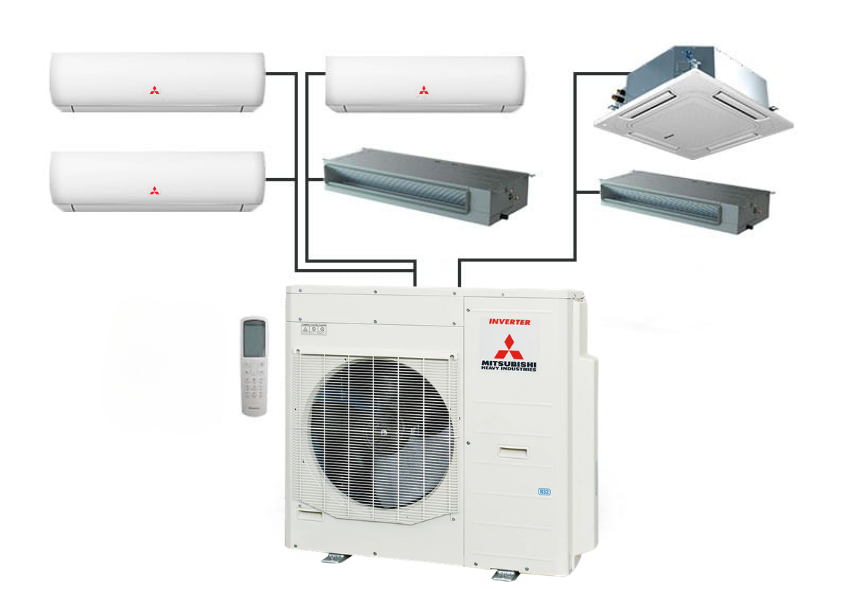

One outdoor condensing unit supplies refrigerant to multiple indoor units via individual refrigerant lines. Each indoor unit has its own fan and can be controlled independently for temperature and fan speed.

Important Limitation: All indoor units connected to the same outdoor unit must operate in the same mode — either all cooling or all heating. You cannot have one room cooling while another is heating at the same time. (This is because the system only sends either cooled or heated refrigerant through the lines.)

Step 1: Measure Your Rooms

Start by listing the rooms you want to cool or heat and their approximate sizes. This helps you choose the correct capacity (kW) for each indoor unit.

• Small bedrooms (up to 15m²): 2.0kW – 2.5kW
• Master bedrooms or medium rooms (15–25m²): 3.5kW
• Living areas / open-plan spaces (25–45m²): 5.0kW, 6.0kW, or 7.1kW

Pro Tip: Slightly oversize indoor units is usually better than undersizing, as inverter technology allows them to run efficiently at lower capacity.

Step 2: Calculate Your Total Capacity

Add up the kW ratings of all the indoor units you need. This total determines which outdoor unit is suitable.

Example: 2.0kW (small bedroom) + 2.0kW (another bedroom) + 3.5kW (living area) = 7.5kW total

Step 3: Select the Right Outdoor Unit

Match your total indoor capacity and number of rooms with the recommended outdoor model:

Quick Example: A 7.5kW total load is best matched with the SCM50ZS-W or higher.

Why choose a 5.0kW outdoor unit (SCM50ZS-W) for a 7.5kW total indoor load?

This is one of the most common questions. Multi-split systems use diversity (or load diversity). Not all rooms reach maximum demand at the same time. Inverter compressors adjust output dynamically, so the outdoor unit rarely needs to run at the full sum of indoor capacities. Choosing a slightly smaller outdoor unit often provides better efficiency and lower running costs.

Key Things You Must Know Before Buying

1. Same-Mode Operation Only

As mentioned, all units run in cooling or heating mode together. If your household often needs mixed modes (e.g. someone wants heating while others want cooling), a multi-head system may not be ideal.

2. Inverter Technology & Efficiency

Modern systems like the SCM-ZS-W series use inverter compressors that vary speed for better energy efficiency, quieter operation, and precise temperature control.

3. Piping & Installation Limits

• There are maximum total piping lengths and height differences.
• Longer runs can slightly reduce efficiency.
• Professional installation is essential — poor piping layout is a common cause of performance issues.

4. Outdoor Unit Reliability

If the single outdoor unit fails, all indoor units stop working. This is the biggest trade-off compared to multiple single-split systems.

5. SCM100ZS-W Special Note

This largest model usually needs at least 3 indoor units connected to operate efficiently and avoid short-cycling.

6. Indoor Unit Compatibility

Not all indoor models work with every outdoor unit (e.g. some larger wall-mounted units may not pair with the SCM100ZS-W). Always check compatibility tables.

Important Tips for Best Performance

• SCM100ZS-W Note: This powerful outdoor unit usually requires at least 3 indoor units connected for optimal efficiency.
• Piping Distance: Check the maximum allowable piping length for your chosen model to ensure all indoor units can be properly connected.
• Compatibility: Some larger indoor units (e.g. SRK63 or SRK95) may not be compatible with the SCM100ZS-W.
• Living Room Rule: In a 2-room setup, pairing one large living room unit (7.1kW or 8.0kW) gives you more flexibility with the second indoor unit.

Pros and Cons of Multi-Head Split Systems

Pros:

• Only one outdoor unit (better appearance, less noise, easier permitting)
• Independent temperature control per room
• Energy efficient when not all rooms are used
• Easier and cheaper to install than ducted systems in existing homes
• Wide choice of indoor unit styles (wall, ceiling cassette, ducted)

Cons:

• All units same mode (cool or heat)
• Single point of failure (outdoor unit)
• Higher upfront cost than single splits for 2–3 rooms
• Piping limitations and more complex installation

Multi-Head Split vs Other Systems

• Vs Single Splits: Multi-head is neater and cheaper long-term when you need 3+ rooms.
• Vs Ducted: Multi-head is better for zoned control and retrofits; ducted is more even but less flexible and more expensive to install in existing homes.
